Product Summary

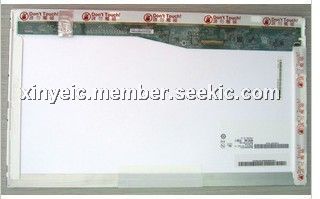

The B156XW02 is a glossy LED LCD.

Parametrics

B156XW02 absolute maximum ratings: (1)logic/LCD drive voltage: 4V; (2)operating temperature: 50℃; (3)operation humidity: 95%RH; (4)Storage temperature: 60℃.

Features

B156XW02 features: (1)VDD, Logic/LCD drive voltage: 3.6V; (2)VDD power: 1.2W; (3)IDD current: 400mA; (4)inrush current: 1500mA.

Diagrams

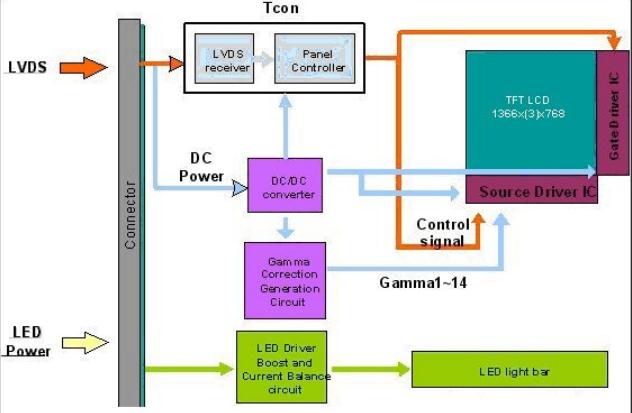

B156XW02 block diagram
