Product Summary
The BTS5240L is an N channel vertical power MOSFET with charge pump, ground referenced CMOS compatible input and diagnostic feedback, monolithically integrated in Smart SIPMOS technology. It provides embedded protective functions, and it extern adjustable current limitation. The applications of the BTS5240L include All types of resistive, inductive and capacitive loads, μC compatible high-side power switch with diagnostic feedback for 12 V grounded loads, Due to the adjustable current limitation best suitable for loads with high inrush currents, so as lamps and Replaces electromechanical relays, fuses and discrete circuits.
Parametrics
BTS5240L absolute maximum ratings: (1)Supply voltage (overvoltage protection): 28 V; (2)Supply voltage for full short circuit protection; Tj = -40 to 150℃: 28 V; (3)Maximum voltage across: 52 V; (4)Load dump protection VLoadDump = VA + VS; VA = 13,5 V; (5)In = low or high; td = 400 ms; RI = 2 Ω: RL = 2.25 Ω: 40 V, RL = 6.8 Ω: 53 V; (6)Load current (Short - circuit current): IL(lim) A; (7)Operating temperature range: -40 to +150 ℃; (8)Storage temperature range: -55 to +150 ℃.
Features
BTS5240L features: (1)Very low standby current; (2)CMOS compatible input; (3)Improved electromagnetic compatibility (EMC); (4)Stable behaviour at low battery voltage.

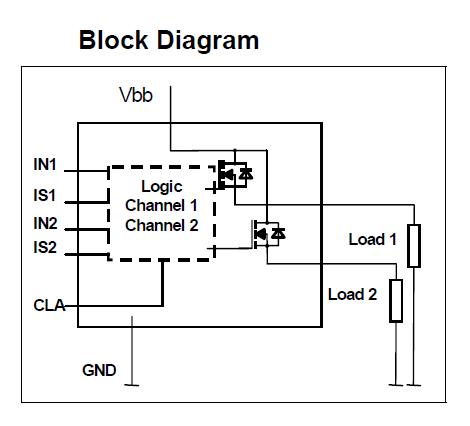

Diagrams
