Product Summary

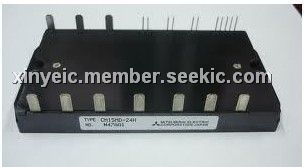

The CM15MD-24H is a mitsubishi igbt module. Application areas of the CM15MD-24H include AC and DC motor controls, General purpose inverters, Servo controls, NC, Robotics.
Parametrics
CM15MD-24H absolute maximum ratings: (1)Collector-emitter voltage: 1200V; (2)Gate-emitter voltage: ±20V; (3)Collector Current: 15A; (4)Maximum collector dissipation: 66W.
Features
CM15MD-24H features: (1)IC:15A; (2)VCES: 1200V; (3)Insulated Type; (4)CIB Module; (5)3f Inverter+3f Converter+Brake; (6)UL Recognized.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 CM15MD-24H |
Other |
|
Data Sheet |
Negotiable |
|
||||
