Product Summary

The FEN30DP is a super fast recovery rectifier.

Parametrics

FEN30DP absolute maximum ratings: (1) Maximum Repetitive Peak Reverse Voltage VRMS: 200V; (2) Maximum RMS Voltage VRRM: 140V; (3) Maximum DC Blocking Voltage VDC: 200V;(4) Maximum Average Forward Rectified Current IF (AV) : 30A; (5) Peak Forward Surge Current per leg IFSM: 300A.

Features

FEB30DP features: (1) Glass passivated chip junction; (2) Low reverse leakage current High forward surge capability; (3) Low power loss, high efficiency; (4) Low stored charge majority carrier conduction; (5) Low forward voltage, high current capability; (6) RoHS Compliance.

Diagrams

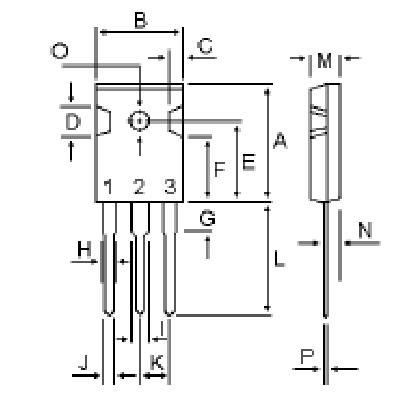

FEN30DP Pin Configuration
