The HD6413002F16 is a high-performance single-chip microcontroller that integrates system supporting functions together with an H8/300H CPU core. The HD6413002F16 has a 32-bit internal architecture with sixteen 16-bit general registers, and aconcise, optimized instruction set designed for speed. It can address a 16-Mbyte linear address space. The HD6413002F16 can be used to implement compact, high-performance systems.
Parametrics
HD6413002F16 absolute maximum ratings: (1) Power supply voltage VCC: -0.3 to 7.0V; (2) Input voltage Vin: -0.3 to Vcc +0.3V; (3) Input voltage (Port) Vin: -0.3 to AVcc +0.3V; (4) Reference voltage VREFF: -0.3 to AVcc +0.3V; (5) Analog power supply voltage ABcc: -0.3 to +7.0V; (6) Analog input voltage VAN: -0.3 to AVcc +0.3V; (7) Operating temperature Topr Regular specifications: (R)C20 to +75°C; (8) Storage temperatureT Tstg: -55 to +125°C.
Features
HD6413002F16 features: (1) Seven external interrupt pins; (2) 30 internal interrupts; (3) Three selectable interrupt priority levels; (4) Chip select output available for areas 0 to 3; (5) 8-bit access or 16-bit access selectable for each area; (6) Two-state or three-state access selectable for each area; (7) Maximum two channels available; (8) Selection of normal mode or block transfer mode; (9) Can be activated by compare match/input capture A interrupts from ITU channels 0 to 3, external requests, or auto-request.

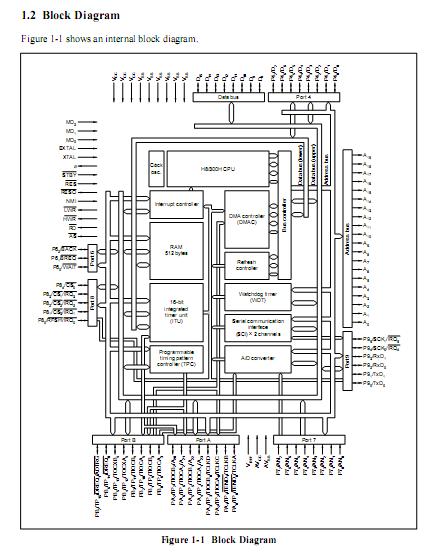

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 HD6413002F16 |
|
IC H8 MCU ROMLESS 100-QFP |
Data Sheet |
|
|
||||||
|
HD6413002F16TR |
|
MCU 5V 0K 100-QFP T&R |
Data Sheet |
