Product Summary

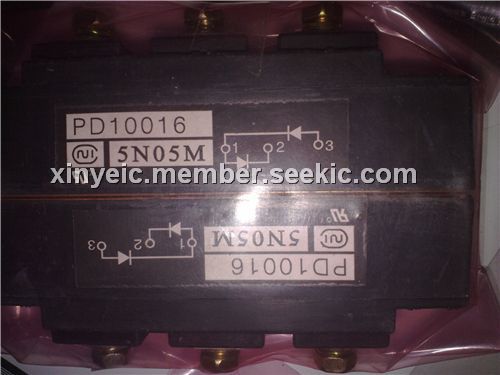

The PD10016 is a diode module.
Parametrics
Absolute maximum ratings: (1)Repetitive Peak Reverse Voltage, VRRM: 1600V; (2)Non Repetitive Peak Reverse Voltage, VRSM: 1700V; (3)Average Rectified Output Current, IO(AV) 50Hz Half Sine Wave condition Tc=80℃: 100A; (4)RMS Forward Current, IF(RMS): 156A; (5)Surge Forward Current, IFSM 50 Hz Half Sine Wave,1Pulse and Non-repetitive: 2000A; (6)I Squared t *1, I2t, 2msec to 10msec: 20000 A2s; (7)Operating JunctionTemperature Range, Tjw: -40 to +150℃; (8)Storage Temperature Range, Tstg: -40 to +125℃; (9)Isoration Voltage Viso Base Plate to Terminals, AC1min: 2500 V; (10)Mounting torque, Case mounting, M6 Screw: 2.4 to 3.5N.m; (11)Mounting torque, Terminals Ftor M5 Screw: 2.4 to 2.8N.m.
Features
Features: (1)Isolated Base; (2)Dual Diodes Cathode Common and Cascaded Circuit; (3)High Surge Capability; (4)UL Recognized, File No. E187184.

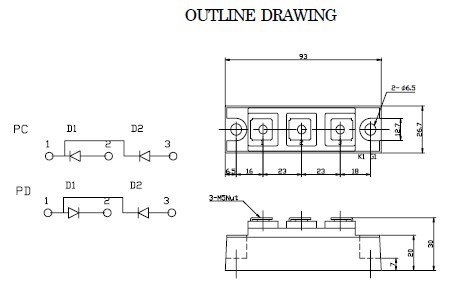

Diagrams
