HMC472LP4E

HMC472LP4E, 6-bit GaAs IC digital attenuator, QFN, +27 dBm, 7V, 0.5W, Hittite Microwave Corporation

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.90~2.20 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10 :	2.20 / Piece
11 ~ 30 :	2.05 / Piece
31 ~ 100 :	1.90 / Piece

PartNumber:: HMC472LP4E

Brand:: Hittite Microwave Corporation - Hittite | Pack: QFN | D/C: 07+

Availability:: Supply Ability: 2/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. yoyo's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-01-03

From Other Seller

Part Number:HMC472LP4E
US $1.90 - 2.20
Quantity:

piece

Product Summary

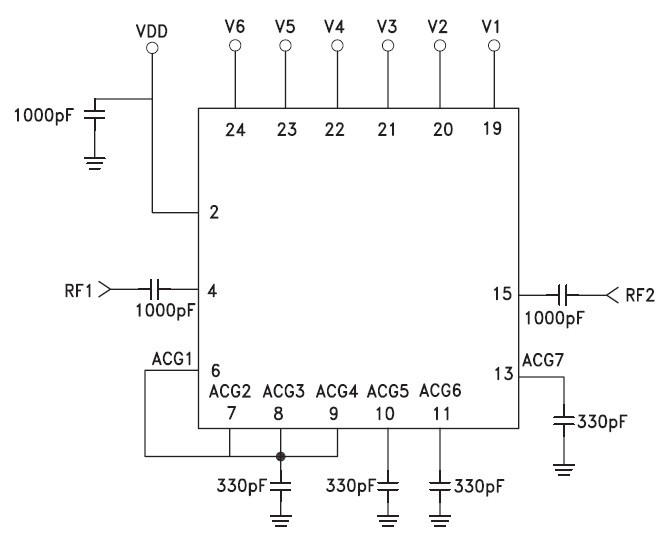

The HMC472LP4E is a 6-bit GaAs IC digital attenuator in low cost leadless surface mount packages. This single positive control line per bit digital attenuator incorporates off chip AC ground capacitors for near DC operation, making it suitable for a wide variety of RF and IF applications. Covering DC to 3.0 GHz, the insertion loss is less than 2.0 dB typical. The attenuator bit values are 0.5 (LSB), 1, 2, 4, 8, and 16 dB for a total attenuation of 31.5 dB. Attenuation accuracy is excellent at ± 0.25 dB typical step error with an IIP3 of +45 dBm. Six TTL/ CMOS control inputs are used to select each attenuation state. A single Vdd bias of +5V is required. Its applications are cellular, umts/3g infrastructure, ism, mmds, wlan, wimax, microwave radio & vsat and test equipment and sensors.

Parametrics

HMC472LP4E absolute maximum ratings: (1)RF Input Power (DC - 3.0 GHz): +27 dBm (T = +85 ℃); (2)Control Voltage Range (V1 to V6): -1V to Vdd +1V; (3)Bias Voltage (Vdd): +7.0 Vdc; (4)Channel Temperature: 150 ℃; (5)Continuous Pdiss (T = 85 ℃), (derate 7.7 mW/℃ above 85 ℃): 0.5 W; (6)Thermal Resistance: 130 ℃/W; (7)Storage Temperature: -65 to +150 ℃; (8)Operating Temperature: -40 to +85 ℃.

Features

HMC472LP4E features: (1)0.5 dB LSB Steps to 31.5 dB; (2)Single Control Line Per Bit; (3)TTL/CMOS Compatible Control; (4)+/- 0.25 dB Typical Step Error; (5)Single +5V Supply; (6)4 mm x 4 mm x 1 mm SMT Package.
