Product Summary
The LA76810A is a monolithic linear IC for PAL/NTSC color television sets VIF/SIF/Y/deflection 1chip IC.
Parametrics
LA76810A absolute maximum ratings: (1)Maximum supply voltage: 7.0 V; (2)Maximum supply current: 25 mA; (3)I25 max: 35 mA; (4)Allowable power dissipation Pd max Ta ≤ 65℃: 1.6 W; (5)Operating temperature Topg: -10 to +65 ℃; (6)Storage temperature Tstg: -55 to +150 ℃.
Features
LA76810A features: (1)VIF/SIF/Y/Deflection Implemented in a 1chip; (2)I2C Bus Control.

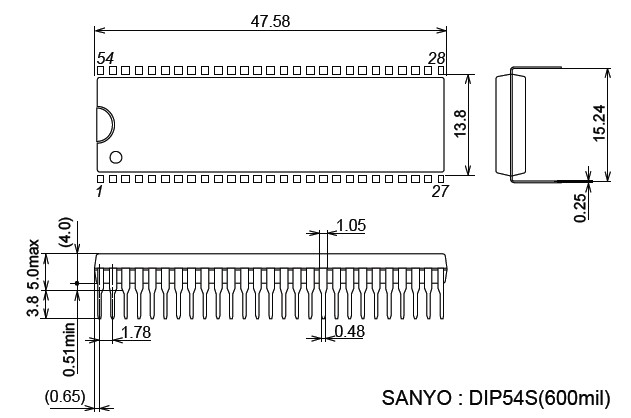

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 LA76810A |
Other |
|
Data Sheet |
Negotiable |
|
||||
