LTC1387CSW

LTC1387CSW, Single RS232/RS485 Multiprotocol Transceiver, sop20, 5V, 85mA, Linear Technology

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.33~1.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
10 ~ 50 :	1.50 / Piece
51 ~ 100 :	1.42 / Piece
101 ~ 500 :	1.33 / Piece

PartNumber:: LTC1387CSW

Brand:: Linear Technology - Linear | Pack: SOP | D/C: 05+

Availability:: Supply Ability: 2/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. yoyo's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-01-25

From Other Seller

Part Number:LTC1387CSW
US $1.33 - 1.50
Quantity:

piece

Product Summary

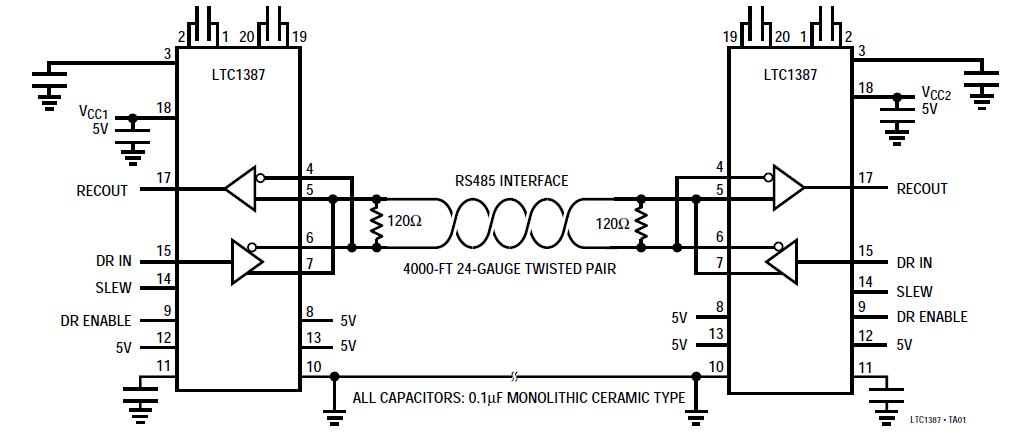

The LTC1387CSW is a low power reconfigurable CMOS bidirectional transceiver. It can be configured as an RS485 differential port or as two RS232 single-ended ports. An onboard charge pump uses four 0.1mF capacitors to generate boosted positive and negative supplies, allowing the RS232 drivers to meet ±5V output swing requirements with only a single 5V supply. A shutdown mode reduces the ICC supply current to 5mA. The applications of the LTC1387CSW include Point-of-Sale Terminals, Software Selectable Multiprotocol Interface Ports, Low Power RS485/RS422/RS232/EIA562 Interface, Cable Repeaters, Level Translators.

Parametrics

LTC1387CSW absolute maximum ratings: (1)Supply Voltage (VCC): 6.5V; (2)Input Voltage Drivers: -0.3V to (VCC + 0.3V); (3)Receivers: -25V to 25V; (4)485/232, ON, DXEN RXEN, SLEW: -0.3V to (VCC + 0.3V); (5)Output Voltage Drivers: -18V to 18V; (6)Receivers: -0.3V to (VCC + 0.3V); (7)Short-Circuit Duration Output: Indefinite; (8)VDD, VEE, C1+, C1–, C2+, C2-: 30 sec; (9)Operating Temperature Range: 0℃ to 70℃; (10)Storage Temperature Range: -65℃ to 150℃; (11)Lead Temperature (Soldering, 10 sec): 300℃.

Features

LTC1387CSW features: (1)Two RS232 Transceivers or One RS485 Transceiver; (2)Operates from a Single 5V Supply; (3)Guaranteed Receiver Output with Inputs Floating or Shorted to Ground; (4)Logic Selectable Fast/Slow RS485 Driver Slew Rate; (5)Low Supply Current: 7mA Typical; (6)5mA Supply Current in Shutdown; (7)Self-Testing Capability in Loopback Mode; (8)Separate Driver and Receiver Enable Controls; (9)Driver Maintains High Impedance in Three-State, Shutdown or with Power Off; (10)Receiver Inputs Can Withstand ±25V.
