Product Summary
The MAX190AEWG is monolithic, CMOS, 12-bit analog-to-digital converters (ADCs) featuring differential inputs, track/hold (T/H) , internal voltatge reference, internal or external clock and parallel interface. The MAX190AEWG operates from single +5V supply. Applciations of the MAX190AEWG in clude: Battery-Powered Data Logging, PC Pen Digitizers, High-Accuracy Process Control, Electromechanical Systems, Data-Acquisition Boards for PCs, Automatic Testing Systems, Telecommunications, Digital-Signal Processing (DSP) .
Parametrics
MAX190AEWG absolute maximum ratings: (1) VDD to DGND: -0.3V to +7V; (2) Continous Power Dissipation (TA=70 °C) Narrow Plastic DIP (derate 13.33mW/ °C; (3) Wide SO (derate 13.33 W/ °C above +70 °C) : 941mW; (4) Wide SO ( derate 11.76m W/°C) : 1000mW; (5) Operating Temperature ranges: -55°C to +125°C; (6) Stroage Temperature Range: -65°C to +160°C; (7) Lead Temperature (soldering, 10 sec) : +300°C.
Features
MAX190AEWG features: (1) 12-Bit Resolution, 1/2 LSB linearity; (2) +5V or ±5V Operation; (3) Built-In Track/Hold; (4) Internal Refrence with adjustment capacity; (5) Low Power: 30mA operating Mode; (6) 100ksps Tested Sampling Rate; (7) Serial and 8-bit Parallel uP Interface; (8) 24-Pin Narrow DIP and Wide SO Packages.

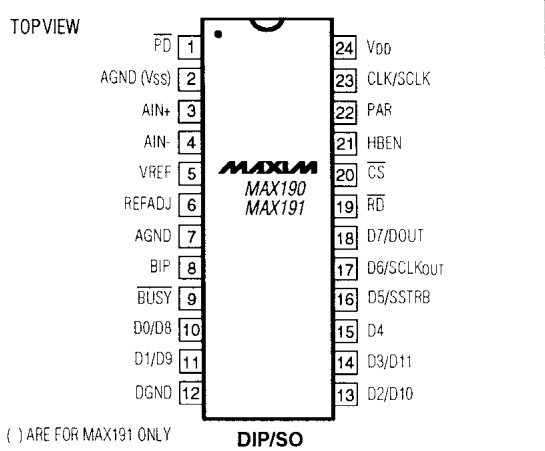

Diagrams

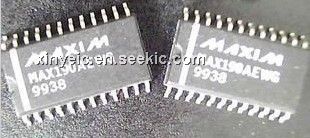

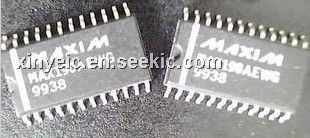

| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX190AEWG |
Maxim Integrated Products |
ADC (A/D Converters) |
Data Sheet |
Negotiable |
|
||||
|
MAX190AEWG+ |
Maxim Integrated Products |
ADC (A/D Converters) |
Data Sheet |
Negotiable |
|
||||
|
MAX190AEWG-T |
Maxim Integrated Products |
ADC (A/D Converters) |
Data Sheet |
Negotiable |
|
||||
|
MAX190AEWG+T |
Maxim Integrated Products |
ADC (A/D Converters) |
Data Sheet |
Negotiable |
|
||||
