Product Summary
The MAX202CPE is a transceiver. The applications of the MAX202CPE include Computers, Laptops, Palmtops, Notebooks, Battery-Powered Equipment and Handheld Equipment. The MAX202CPE is designed for RS-232 and V.28 communication interfaces where Q12V supplies are not available. On-board charge pumps convert the +5V input to the Q10V needed for RS-232 output levels. The MAX202CPE operates from +5V and +12V, respectively, and contains a +12V to -12V charge-pump voltage converter.
Parametrics
MAX202CPE absolute maximum ratings: (1)VCC: -0.3V to +6V; (2)V+: (VCC - 0.3V) to +14V; (3)V-: +0.3V to -14V; (4)Input Voltages TIN: -0.3V to (VCC + 0.3V); RIN: Q30V; (5)Output Voltages TOUT: (V+ + 0.3V) to (V- - 0.3V);ROUT: -0.3V to (VCC + 0.3V); (6)Short-Circuit Duration TOUT: Continuous; (7)Operating Temperature Ranges: 0 to +70℃; (8)Storage Temperature Range: -65 to +160℃; (9)Lead Temperature (soldering, 10s):+300℃.
Features
MAX202CPE features: (1)0.1μF to 10μF external capacitors; (2)120kbits/sec data rate; (3)2 receivers active in shutdown mode; (4)small 28-pin SSOP package; (5)low power shutdown current: 1μA; (6)designed for RS-232 and V.28 applications; (7)three state TTL/CMOS receiver outputs.

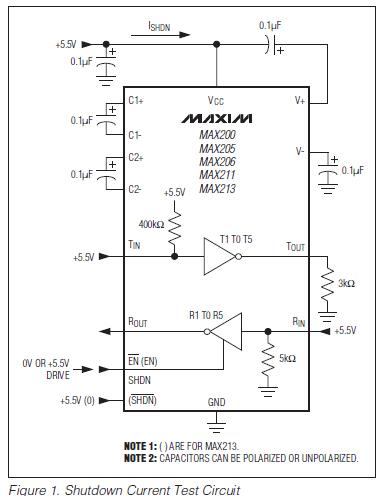

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX202CPE |
Maxim Integrated Products |
RS-232 Interface IC |
Data Sheet |
Negotiable |
|
||||||||||||
|
MAX202CPE+ |
Maxim Integrated Products |
RS-232 Interface IC 5V RS-232 Tcvr w/0.1uF External Cap |
Data Sheet |
|
|
||||||||||||
