Product Summary
The MAX6818EAP is a switch debouncer that provides clean interfacing of mechanical switches to digital systems. The MAX6818EAP accepts one or more bouncing inputs from a mechanical switch. Applications of the MAX6818EAP include: μP Switch Interfacin, Industrial Instruments, PC-Based Instruments, Portable Instruments, Automotive Applications, Membrane Keypads.
Parametrics
MAX6818EAP absolute maximum ratings: (1) VCC: -0.3V to +6V; (2)IN_ (Switch Inputs) : -30V to +30V; (3) EN: -0.3V to +6V; (4) OUT Short-Circuit Duration (One or Two Outputs to GND) : Continuous; (5) Operating Temperature Range: -40°C to +85°C; (6) Storage Temperature Range: -65 to +160°C; (7) Lead Temperature (soldering, 10sec) : +300°C.
Features
MAX6818EAP features: (1) Robust Inputs can Exceed Power Supplies up to ±25V; (2) ESD Protection for Input Pins; (3) Small SOT Packages (4 and 6 pins) ; (4) Single-Supply Operation from +2.7V to +5.5V; (5) No External Components Required; (6) 6μA Supply Current; (7) Three-State Outputs for Directly Interfacing; (8) Switch Change-of-State Output Simplifies.

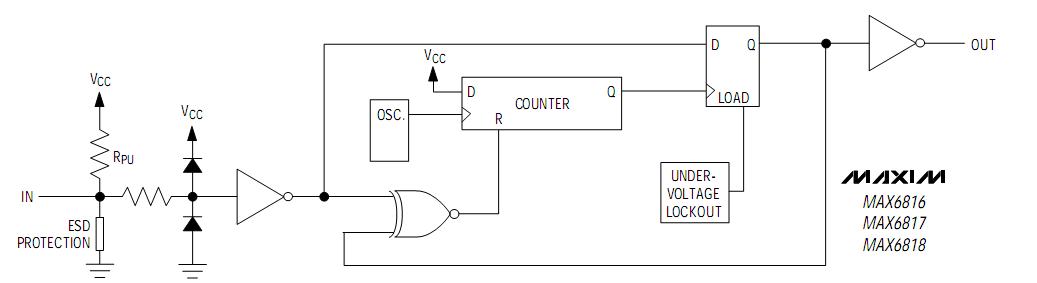

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX6818EAP |
Maxim Integrated Products |
Supervisory Circuits |
Data Sheet |
Negotiable |
|
||||||||||||
 |
MAX6818EAP/GG8 |
Maxim Integrated Products |
Supervisory Circuits |
Data Sheet |
Negotiable |
|
||||||||||||
|
MAX6818EAP+ |
Maxim Integrated Products |
Supervisory Circuits Octal Switch Debouncer |
Data Sheet |
|
|
||||||||||||
|
MAX6818EAP+T |
Maxim Integrated Products |
Supervisory Circuits Octal Switch Debouncer |
Data Sheet |
|
|
||||||||||||
|
MAX6818EAP-T |
Maxim Integrated Products |
Supervisory Circuits |
Data Sheet |
Negotiable |
|
||||||||||||
