MAX7456EUI

Product Summary

The MAX7456EUI is a single-channel monochrome on-screen display (OSD) generator. It lowers system cost by elimi- nating the need for an external video driver, sync separator, video switch, and EEPROM. The MAX7456EUI serves all national and international markets with 256 user-pro- grammable characters in NTSC and PAL standards. The MAX7456EUI+T easily displays information such as company logo, custom graphics, time, and date with arbitrary characters and sizes. The MAX7456EUI is preloaded with 256 characters and pictographs and can be reprogrammed in-circuit using the SPI port. The applications of the MAX7456EUI inlcude Security Switching Systems, Security Cameras, Industrial Applications, In-Cabin Entertainment, Consumer Electronics.

Parametrics

MAX7456EUI absolute maximum ratings: (1)AVDD to AGND: -0.3V to +6V; (2)DVDD to DGND: -0.3V to +6V; (3)PVDD to PGND: -0.3V to +6V; (4)AGND to DGND: -0.3V to +0.3V; (5)AGND to PGND: -0.3V to +0.3V; (6)DGND to PGND: -0.3V to +0.3V; (7)VIN, VOUT, SAG to AGND: -0.3V to (VAVDD + 0.3V); (8)HSYNC, VSYNC, LOS to AGND: -0.3V to +6V; (9)RESET to AGND: -0.3V to (VAVDD + 0.3V); (10)CLKIN, CLKOUT, XFB to DGND: -0.3V to (VDVDD + 0.3V); (11)SDIN, SCLK, CS, SDOUT to DGND: -0.3V to (VDVDD + 0.3V); (12)Maximum Continuous Current into VOUT: ±100mA; (13)Continuous Power Dissipation: 2162mW; (14)Operating Temperature Range: -40 to +85℃; (15)Junction Temperature: +150℃; (16)Storage Temperature Range: -60 to +150℃; (17)Lead Temperature (soldering, 10s): +300℃.

Features

MAX7456EUI features: (1)256 User-Defined Characters or Pictographs in Integrated EEPROM; (2)12 × 18 Pixel Character Size; (3)Blinking, Inverse, and Background Control Character Attributes; (4)Selectable Brightness by Row; (5)Displays Up to 16 Rows × 30 Characters; (6)Sag Compensation On Video-Driver Output; (7)LOS, VSYNC, HSYNC, and Clock Outputs; (8)Internal Sync Generator; (9)NTSC and PAL Compatible; (10)SPI-Compatible Serial Interface; (11)Delivered with Preprogrammed Character Set.

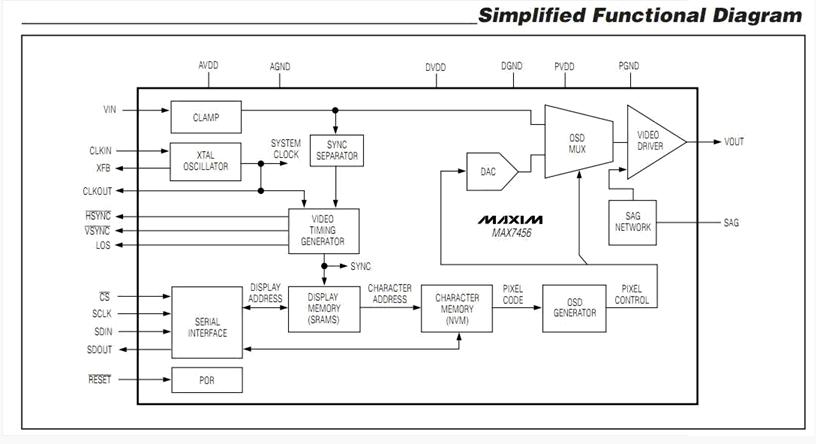

Diagrams
