Product Summary

The MC1709CG is a monolithic operational amplifier designed for use as a summing amplifier, integrator, or amplifier with operating characteristics as a function of the external feed-back components.

Parametrics

MC1709CG absolute maximum ratings: (1)Power supply voltage, VCC: 18Vdc; VEE: -18Vdc; (2)Input differential voltage range, Vidr: ±5.0V; (3)Input common-mode range, Vicr: ±10V; (4)Output load current, IL: 10mA; (5)Ouput short-circuit duRATION, ts: 5.0s; (6)Power dissipation, PD: 680mW; (7)Operating ambient temperature range, TA: -55 to 125℃.

Features

MC1709CG features: (1)High-performance open loop gain characteristics Avol=45,000 typical; (2)Low temperature drift-±30μV/℃ typical; (3)Large output voltage swing-±14V typical @ ±15V supply; (4)Low output inpedance-ZO=150 ohms typical.

Diagrams

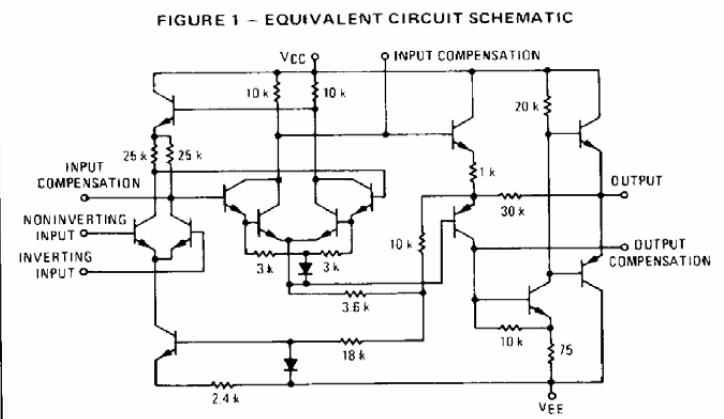

MC1709CG block diagram
