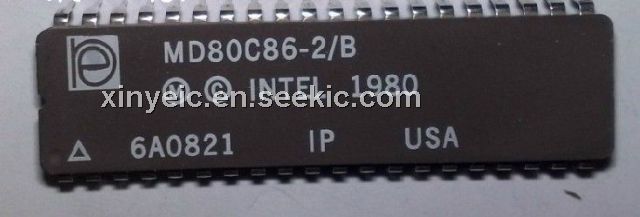

Product Summary

The MD80C86 is a CMOS 16-bit microprocessor. The Intersil MD80C86 high performance 16-bit CMOS CPU is manufactured using a self-aligned silicon gate CMOS process (Scaled SAJI IV). Two modes of operation, minimum for small systems and maximum for larger applications such as multiprocessing, allow user configuration to achieve the highest performance level. Full TTL compatibility (with the exception of CLOCK) and industry standard operation allow use of existing NMOS 8086 hardware and software designs.

Parametrics

MD80C86 absolute maximum ratings: (1)Supply voltage: +8.0V; (2)Input, output or I/O voltage: GND -0.5V to VCC +0.5V; (3)storage temperature range: -65℃ to +150℃; (4)Junction Temperature: ceramic packages: +175℃; plastic packages: +150℃; (5)Lead temperature (soldering 10s): +300℃ (lead tips only for surface mount packages); (6)ESD classification: class 1.

Features

MD80C86 features: (1)Compatible with NMOS 8086; (2)Completely static CMOS design, DC: 8MHz; (3)Low power operation, lCCSB: 500μA Max; ICCOP: 10mA/MHz Typ; (4)1mbyte of direct memory addressing capability; (5)24 operand addressing modes; (6)Bit, byte, word and block move operations; (7)8-Bit and 16-bit signed/unsigned arithmetic: binary, or decimal; multiply and divide; (8)Wide operating temperature range, M80C86: -55℃ to +125℃.

Diagrams

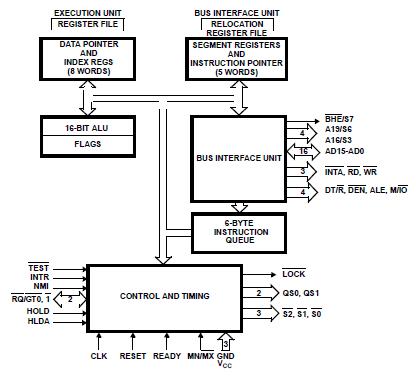

MD80C86 block diagram
