NE555

NE555, precision timing circuit, dip8, 18V, ±225 mA, Texas Instruments

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.09~0.10 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
50 ~ 200 :	0.10 / Piece
201 ~ 500 :	0.09 / Piece
501 ~ 1000 :	0.09 / Piece

PartNumber:: NE555

Brand:: Texas Instruments - TI | Pack: DIP | D/C: 07+

Availability:: Supply Ability: 2/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. yoyo's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-01-25

From Other Seller

Part Number:NE555
US $0.09 - 0.10
NE555DR

US $0.11 - 0.11 / Piece
(0) Remove
NE555P

US $0.10 - 0.80 / Piece
(0) Remove
Quantity:

piece

Product Summary

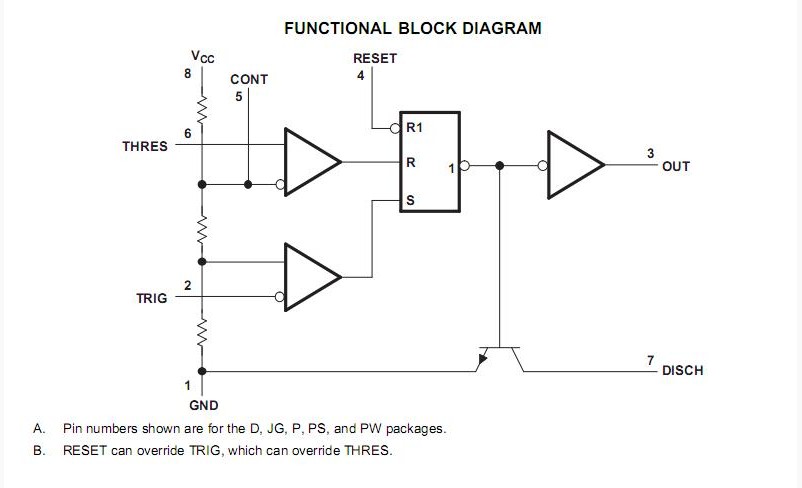

The NE555 is a precision timing circuit capable of producing accurate time delays or oscillation. In the time-delay or monostable mode of operation, the timed interval is controlled by a single external resistor and capacitor network. In the astable mode of operation, the frequency and duty cycle of the NE555 can be controlled independently with two external resistors and a single external capacitor. The threshold and trigger levels normally are two-thirds and one-third, respectively, of VCC. These levels of the NE555 can be altered by use of the control-voltage terminal. When the trigger input falls below the trigger level, the flip-flop is set, and the output goes high. The output circuit is capable of sinking or sourcing current up to 200 mA. Operation is specified for supplies of 5 V to 15 V. With a 5-V supply, output levels of the NE555 are compatible with TTL inputs.

Parametrics

NE555 absolute maximum ratings: (1)Supply voltage: 18 V; (2)Input voltage: VCC; (3)Output current: ±225 mA; (4)Package thermal impedance: 85℃/W; (5)Operating virtual junction temperature: 150℃; (6)Storage temperature range: –65℃ to 150℃.

Features

NE555 features: (1)Timing From Microseconds to Hours ; (2)Adjustable Duty Cycle; (3)Astable or Monostable Operation ; (4)TTL-Compatible Output Can Sink or Source up to 200 mA.
