Product Summary

The NJM39610D2 is a power amplifier designed for use in low voltage consumer applications. The gain is internally set to 20 to keep external part count low, but the addition of an external resistor and capacitor between pins 1 and 8 will increase the gain to any value up to 200. The inputs are ground reference while the output is automatically biased to one half the supply voltage. The quiescent power drain is only 24 milliwalts when operating from a 6 volt supply, making the NJM39610D2 ideal for battery operation. The applications of the NJM39610D2 include AM-FM radio amplifiers, Portable lapc player aniplitiers, Intercoms, TV sound systems, Line drivers, UUrasconic drivers, Small servo drivers, Power converters.

Parametrics

NJM39610D2 absolute maximum ratings: (1)Supply Voltage: 15V; (2)Power Dissipation, Pd: (DIP8) 700mW; (SIP8) 800mW; (DMP8) 300mW; (3)Input Voltage Range, VlN: 0.4V; (4)Operating Temperature Range, Topr: -40℃ to 85℃; (5)Storage Temperature Range, Tstg: -40℃ to +125℃.

Features

NJM39610D2 features: (1)Operating Voltage: (4V to 12V); (2)Minimum External Components; (3)Low Operating Current: 3mA); (4)Voltage Gain: (20 to 200); (5)Single Supply Operation; (6)Self-centering of Output Offset Voltage; (7)Package Outline, DIP8, SIP8, DMP8; (8)Bipolar Technology.

Diagrams

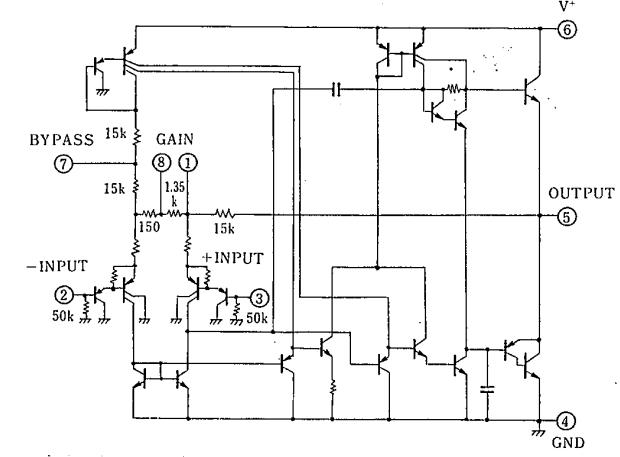

NJM39610D2 block diagram
