Product Summary
The OPA2251PA is designed for battery powered, portable applications. The OPA241 series is optimized for operation at low power supply voltage while theOPA2251PA series is optimized for high power supplies. The OPA2251PA is unity-gain stable and can drive large capacitive load. Applications of the OPA2251PA include: BATTERY OPERATED INSTRUMENTS, PORTABLE DEVICES, MEDICAL INSTRUMENTS and TEST EQUIPMENT.
Parametrics
PA2251PA absolute maximum ratings: (1) Supply Voltage, V+ to V-: 36V; (2) Input Voltage: (V-) -0.5V to (V+) +0.5V; (3) Output Short Circuit to Ground: Continuous; (4) Operating Temperature: -55°C to +125°C; (5) Storage Temperature: -55°C to +125°C; (6) Junction Temperature: 150°C; (7) Lead Temperature (soldering, 10s) : 300°C.
Features
OPA2251PA features: (1)micropower: IQ=25μA; (2) single-supply operation; (3) rail to rail output (within 50mV) ; (3) wide supply range; (5) single supply: +2.7V to 3.6V; (6) dual supply: ±1.35V to ±18V; (7) low offset voltage: ±250μV max; (8) high common-mode rejection: 124dB; (9) high open-loop gain: 128dB; (10) single, dual and quad.

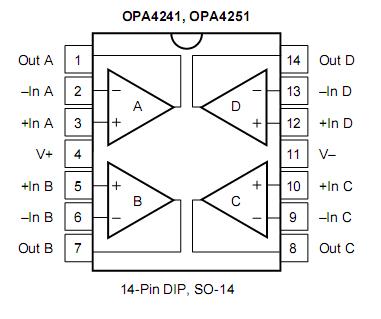

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 OPA2251PA |
Texas Instruments |
Operational Amplifiers - Op Amps Single-Supply MicroPower Oper Amp |
Data Sheet |
|
|
||||||||||||
|
OPA2251PAG4 |
Texas Instruments |
Operational Amplifiers - Op Amps Single-Supply MicroPower Oper Amp |
Data Sheet |
|
|
||||||||||||
