STV9326

STV9326, Vertical Deflection Booster, TO, 40V, ±5 A, STMicroelectronics

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.50~0.67 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
10 ~ 100 :	0.67 / Piece
101 ~ 500 :	0.58 / Piece
501 ~ 1000 :	0.50 / Piece

PartNumber:: STV9326

Brand:: STMicroelectronics - ST | Pack: TO | D/C: 08+

Availability:: Supply Ability: 2/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. yoyo's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-01-24

From Other Seller

Part Number:STV9326
US $0.50 - 0.67
Quantity:

piece

Product Summary

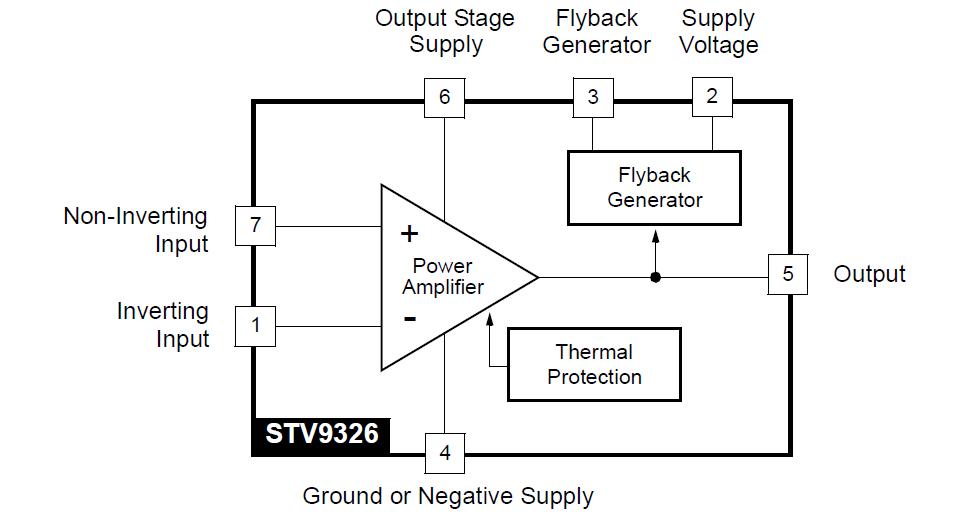

The STV9326 is a vertical deflection booster designed for TV and monitor applications. This device, supplied with up to 30 V, provides up to 3 App output current to drive the vertical deflection yoke. The internal flyback generator delivers flyback voltages up to 65 V. In double-supply applications, a stand-by state will be reached by stopping the (+) supply alone.

Parametrics

STV9326 absolute maximum ratings: (1)VS, Supply Voltage (pin 2) - Note 1 and Note 2: 40 V; (2)V5, V6, Flyback Peak Voltage - Note 2: 65 V; (3)V3, Voltage at Pin 3 - Note 2, Note 3 and Note 6: -0.4 to (VS + 3) V; (4)V1, V7, Amplifier Input Voltage - Note 2, Note 6 and Note 7: - 0.4 to (VS + 2) or +40 V; (5)I0 (1), Output Peak Current at f = 50 to 200 Hz, t ≤ 10μs - Note 4: ±5 A; (6)I0 (2), Output Peak Current non-repetitive - Note 5: ±2 A; (7)I3, Sink Sink Current, t<1ms - Note 3: 2 A; (8)I3, Source Source Current, t < 1ms 2: A; (9)I3, Flyback pulse current at f=50 to 200 Hz, t≤10μs - Note 4: ±5 A; (10)ESD1, Human body model (100 pF discharged through 1.5 kΩ): 2 kV; (11)ESD2, EIAJ Standard (200 pF discharged through 0 Ω): 300 V; (12)Ts, Storage Temperature: -40 to 150℃; (13)Tj, Junction Temperature: +150℃.
