Product Summary

The TD62083AFG is a high-voltage, high-current darlington driver comprised of eight NP darlington pairs. All units feature integral clamp diodes for switching inductive loads. Applications of the TD62083AFG include relay, hammer, lamp and display (LED) drivers. The suffix (G) appended to the part number represents a Lead (Pb)-Free product.

Parametrics

TD62083AFG absolute maximum ratings: (1)Output sustaining voltage VCE (SUS): -0.5 to 50 V; (2)Output current IOUT: 500 mA/ch; (3)Input voltage VIN: -0.5 to 30 V; (4)Input current IIN: 25 mA; (5)Clamp diode reverse voltage VR: 50 V; (6)Clamp diode forward current IF: 500 mA; (7)Power dissipation PD APG: 1.47W, AFG: 0.96 W; (8)Operating temperature Topr: -40 to 85 ℃; (9)Storage temperature Tstg: -55 to 150 ℃.

Features

TD62083AFG features: (1)Output clamp diodes; (2)Inputs compatible with various types of logic; (3)Package type-APG: DIP-18 pin; (4)Package type-AFG: SOP-18 pin.

Diagrams

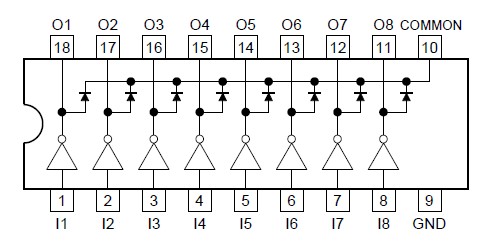

TD62083AFG block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

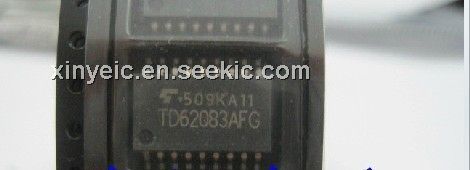

TD62083AFG(5,S)
TD62083AFG(5,S)

Toshiba

Transistors Darlington 8CH. 50V/.5A IFD IC

Data Sheet

Negotiable
TD62083AFG(5,S,EL)
TD62083AFG(5,S,EL)

Toshiba

Transistors Darlington 8CH. 50V/.5A IFD IC

Data Sheet

Negotiable
TD62083AFG(O,N)
TD62083AFG(O,N)

Toshiba

Motor / Motion / Ignition Controllers & Drivers 8-Ch NPN Driver 500mA 50V 5V

Data Sheet

0-1: $0.50
1-10: $0.43
10-100: $0.39
100-250: $0.36
TD62083AFG(O,N,EL)
TD62083AFG(O,N,EL)

Toshiba

Motor / Motion / Ignition Controllers & Drivers 8-Ch NPN Driver 500mA 50V 5V

Data Sheet

0-1: $0.50
1-10: $0.43
10-100: $0.39
100-250: $0.36
