Product Summary
The TDA7297SA is a dual bridge amplifier specially designed for TV and Portable Radio applications.
Parametrics
TDA7297SA absolute maximum ratings: (1)Vs, Supply Voltage: 20V; (2)IO, Output Peak Current (internally limited): 2A; (3)Ptot, Total power dissipation (Tcase = 70℃): 30W; (4)Top, Operating Temperature: 0 to 70℃; (5)Tstg, Tj, Storage and Junction Temperature: -40 to 150℃.
Features
TDA7297SA features: (1)wide supply voltage range (6V-18V); (2)minimum external components: no swr capacitor; no bootstrap; no boucherot cells; internally fixed gain; (3)stand-by & mute functions; (4)short circuit protection; (5)thermal overload protection.

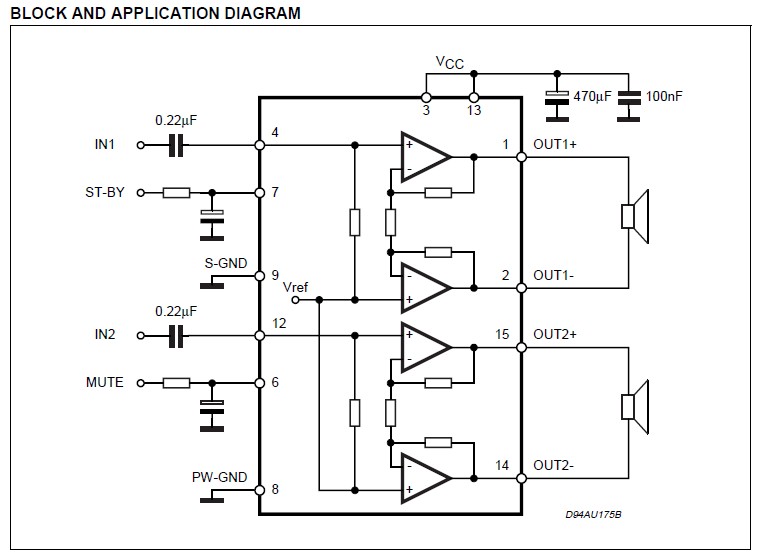

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TDA7297SA |
STMicroelectronics |
Audio Amplifiers 10W, 10W Dual Bridge 6V - 18V Portable |
Data Sheet |
|
|
||||||||||||
