Product Summary
The TL783CKC is an adjustable three-terminal high-voltage regulator with an output range of 1.25 V to 125 V and a DMOS output transistor capable of sourcing more than 700 mA. It is designed for use in high-voltage applications where standard bipolar regulators cannot be used. Excellent performance specifications, superior to those of most bipolar regulators, are achieved through circuit design and advanced layout techniques. As a state-of-the-art regulator, the TL783CKC combines standard bipolar circuitry with high-voltage double-diffused MOS transistors on one chip to yield a device capable of withstanding voltages far higher than standard bipolar integrated circuits.
Parametrics
TL783CKC absolute maximum ratings: (1)Input-to-output differential voltage, Vl-VO: 125 V; (2)Operating free-air, TA; case, TC; or virtual junction, TJ, temperature: 150℃; (3)Package thermal impedance, qJA (see Notes 1 and 2): 22℃/W; (4)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 260℃; (5)Storage temperature range, Tstg: -65℃ to 150℃.
Features
TL783CKC features: (1)Output Adjustable From 1.25 V to 125 V When Used With an External Resistor Divider; (2)700-mA Output Current; (3)Full Short-Circuit, Safe-Operating-Area, and Thermal-Shutdown Protection; (4)0.001%/V Typical Input Voltage Regulation; (5)0.15% Typical Output Voltage Regulation; (6)76-dB Typical Ripple Rejection; (7)Standard TO-220AB Packag.

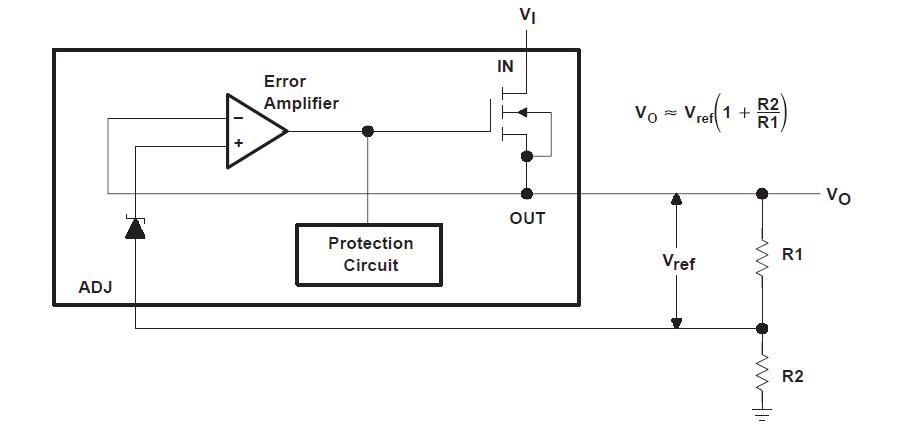

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TL783CKC |
Texas Instruments |
Linear Regulators - Standard Adj Vlt Reg |
Data Sheet |
Negotiable |
|
||||||||||||
 |
TL783CKCE3 |
Texas Instruments |
Linear Regulators - Standard 3-Trm 700mA Hi-Vltg Adj Pos Voltage Reg |
Data Sheet |
Negotiable |
|
||||||||||||
|
TL783CKCSE3 |
Texas Instruments |
Linear Regulators - Standard 3 Terminal 700mA Hi VltgAdj+VltgRegulatr |
Data Sheet |
|
|
||||||||||||
