Product Summary

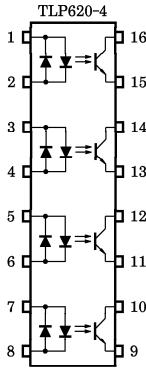

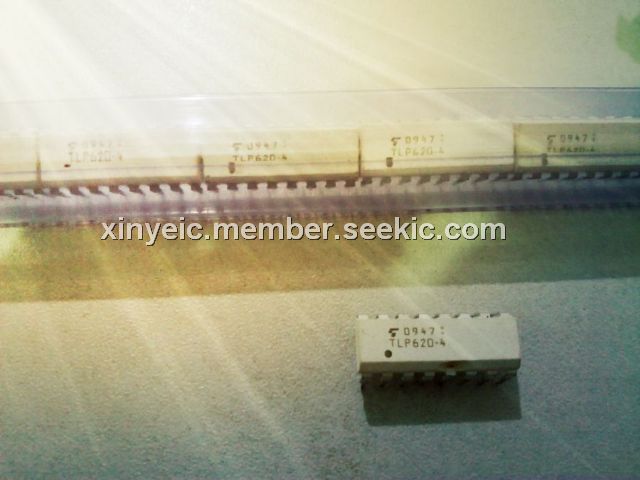

The TLP620-4 is a photocoupler. It consists of a photo-transistor optically coupled to two gallium arsenide infrared emitting diode connected in inverse parallel. The device provides four isolated channels in a sixteen palstic DIP.
Parametrics
TLP620-4 absolute maximum ratings: (1)LED, forward current, IF(RMS): 50mA; forward current derating, △IF/℃: -0.5mA/℃; pulse forward current, IFP: 1A; power dissipation derating, △PD/℃: -0.7mW/℃; junction temperature, Tj: 125℃; (2)detector, collector-emitter voltage, VCEO: 55V; (3)detector, collector-emitter voltage, VCEO: 55V; emitter-collector voltage, VECO: 7V; collector current, IC: 50mA; collector power dissipation, PC: 100mW; collector power dissipation derating, △PC/℃: -1.0mW/℃; junction temperature, Tj: 125℃; (4)storagte temperature range, Tstg: -55 to 125℃; (5)operating temperature range, Topr: -525 to 125℃; (6)lead soldering temperature, Tsold: 260℃; (7)total package power dissipation derating, △PT/℃: -1.5mW/℃; (8)isolation voltage, BVS: 5000Vrms.
Features
TLP620-4 features: (1)collector-emitter voltage: 55V min; (2)current transfer ratio: 50% min; rank GB: 100% min.
Diagrams
