AM29F010-120PC

Product Summary

The am29f010-120pc is a 1 Mbit, 5.0 Volt-only Flash memory organized as 131,072 bytes. The device is offered in 32-pin PLCC, TSOP, and PDIP packages. The byte-wide data appears on DQ0-DQ7. The am29f010-120pc is designed to be programmed in-system with the standard system 5.0 Volt VCC supply. A 12.0 volt VPP is not required for program or erase operations. The device can also be programmed or erased in standard EPROM programmers. The am29f010-120pc offers access times of 45, 55, 70, 90, and 120 ns, allowing high-speed microprocessors to operate without wait states. To eliminate bus contention the device has separate chip enable(CE#), write enable (WE#) and output enable (OE) controls. The am29f010-120pc requires only a single 5.0 volt power supply for both read and write functions. Internally generated and regulated voltages are provided for the program and erase operations.

Parametrics

am29f010-120pc absolute maximum ratings: (1)Storage Temperature Plastic Packages: -65℃ to +125℃; (2)Ambient Temperature with Power Applied: -55℃ to +125℃; (3)Voltage with Respect to Ground: VCC: -2.0V to +7.0V, A9: -2.0V to +12.5V, All other pins: -2.0V to +7.0V; (4)Output Short Circuit Current: 200mA.

Features

am29f010-120pc features: (1)Single power supply operation: 5.0 V ± 10% for read, erase, and program operations, Simplifies system-level power requirements; (2)High performance:45 ns maximum access time; (3)Low power consumption: 30 mA max active read current, 50 mA max program/erase current, ＜25 μA typical standby current; (4)Flexible sector architecture: Eight uniform sectors, Any combination of sectors can be erased, Supports full chip erase; (5)Sector protection: Hardware-based feature that disables/reenables program and erase operations in any combination of sectors, Sector protection/unprotection can be implemented using standard PROM programming equipment; (6)Embedded Algorithms: Embedded Erase algorithm automatically ; (7)pre-programs and erases the chip or any combination of designated sector, Embedded Program algorithm automatically programs and verifies data at specified address; (8)Minimum 100,000 program/erase cycles guaranteed; (9)Package options: 32-pin PLCC, 32-pin TSOP, 32-pin PDIP; (10)Compatible with JEDEC standards: Pinout and software compatible with single-power-supply flash, Superior inadvertent write protection; (11)Data# Polling and Toggle Bits: Provides a software method of detecting ; (12)program or erase cycle completion.

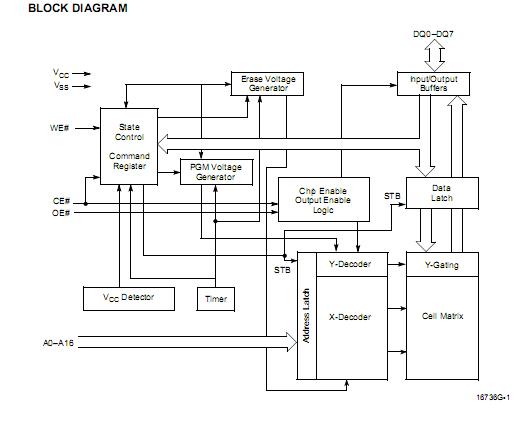

Diagrams
