Product Summary
The fx207 is a very high-speed switching.
Parametrics
fx207 absolute maximum ratings: (1) Drain-to-source Voltage VDSS: -12V; (2) Gate-to-Source Voltage VGSS: ±10V; (3) Drain Current (DC) ID: -4A; (4) Drain Current (Pulse) IDP: PW≤10μS, duty cycle≤1% : -4A; (5) Allowable Power Dissipation PD Tc=25°C : 8W, Mounted on ceramic board (750mm×0.8mm) : 2W; (6) Channel Temperature Tch: 150°C, Storage Temperature: -55 to +150°C.
Features
fx207 features: (1) Low ON-resistance; (2) Very high-speed switching; (3) 2.5V drive.

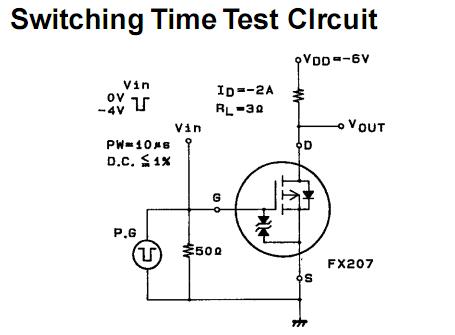

Diagrams
