Product Summary

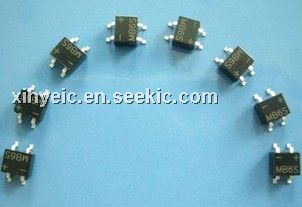

The mb6s is a miniature glass passivated single-phase surface mount bridge rectifier.

Parametrics

mb6s absolute maximum ratings: (1)Peak forward surge current 8.3msec single half sinewave superimposed on rated load (JEDEC Method) IFSM: 35.0 Amps; (2)Rating for fusing (t<8.3ms) I2t: 5.0 A2sec; (3)Maximum instantaneous forward voltage drop per leg at 0.4A VF: 1.0 Volts; (4)Maximum DC reverse current at TA=25℃: 5.0 mA; (5)rated DC blocking voltage per leg TA=125℃ IR: 100; (6)Typical junction capacitance per leg (NOTE 3) CJ: 13.0 pF; (7)Typical thermal resistance per leg (NOTE 1) RQJA: 85.0 ℃/W; (8)RQJA 70.0 ℃/W; (9)RQJL 20.0 ℃/W; (10)Operating junction and storage temperature range TJ, TSTG: -55 to +150 ℃.

Features

mb6s features: (1)Plastic package has Underwriters Laboratory Flammability Classification 94V-0; (2)This series is UL recognized under Component Index, file number E54214; (3)Glass passivated chip junctions; (4)High surge overload rating: 35A peak; (5)Saves space on printed circuit boards; (6)High temperature soldering guaranteed: 260℃/10 seconds at 5 lbs. (2.3kg) tension.

Diagrams

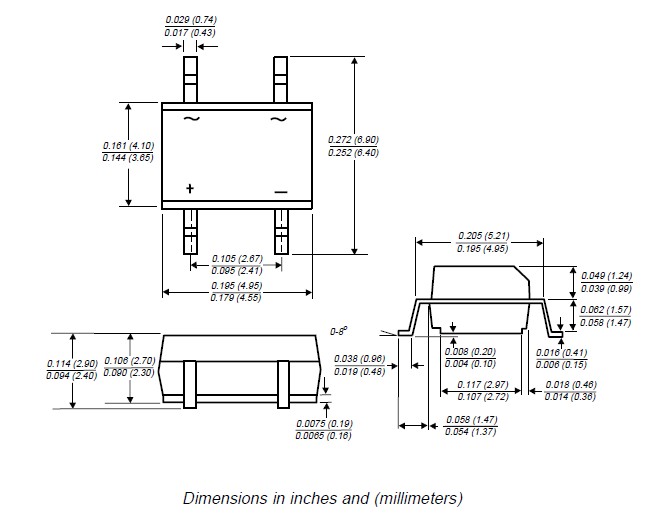

mb6s block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

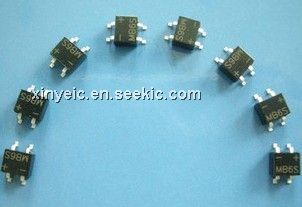

MB6S
MB6S
Fairchild Semiconductor
Bridge Rectifiers 0.5A Bridge
Data Sheet
0-1: $0.30
1-25: $0.20
25-100: $0.16
100-250: $0.13
MB6S_Q
MB6S_Q
Fairchild Semiconductor
Bridge Rectifiers 0.5A Bridge
Data Sheet
Negotiable
MB6S-E3/45
MB6S-E3/45
Vishay Semiconductors
Bridge Rectifiers 600 Volt 0.5 Amp 35 Amp IFSM
Data Sheet
0-1: $0.26
1-100: $0.19
100-500: $0.15
500-1000: $0.13
MB6S-E3/80
MB6S-E3/80
Vishay Semiconductors
Bridge Rectifiers 600 Volt 0.5 Amp 35 Amp IFSM
Data Sheet
0-1: $0.27
1-10: $0.23
10-100: $0.20
100-250: $0.18
MB6S-TP
MB6S-TP
Micro Commercial Components (MCC)
Bridge Rectifiers .5A 600V
Data Sheet
0-1: $0.35
1-25: $0.27
25-100: $0.23
100-500: $0.19
