Product Summary
The 78Q8392L includes analog transmit and receive buffers, a 10MHz on-board oscillator, timing logic for jabber and heartbeat functions, output drivers and bandgap reference, in addition to a current reference and collision detector. The 78Q8392L single-ended coaxial cable signals and the Manchester-encoded differential logic signals. The 78Q8392L is available in 16-pin plastic and 28-pin PLCC packages.
Parametrics
78Q8392L absolute maximum ratings: (1) Supply Voltage: -10V; (2) Input Voltage: 0 to VEE; (3) Storage Temperature: -65 to +150°C; (4) Soldering (Reflow or Dip) : 235°C for 10 sec;(5) Package power dissipation: 1.0 watts @ 25°C.
Features
78Q8392L features: (1) Very low power consumption; (2) Compliant with Ethernet II, IEEE 802.3 10Base5 and 10Base2; (3) ntegrates all transceiver functions except signal and power isolation; (4) Jabber timer function integrated on chip; (5) Squelch circuitry at all inputs rejects noise; (6) Advanced BiCMOS process.

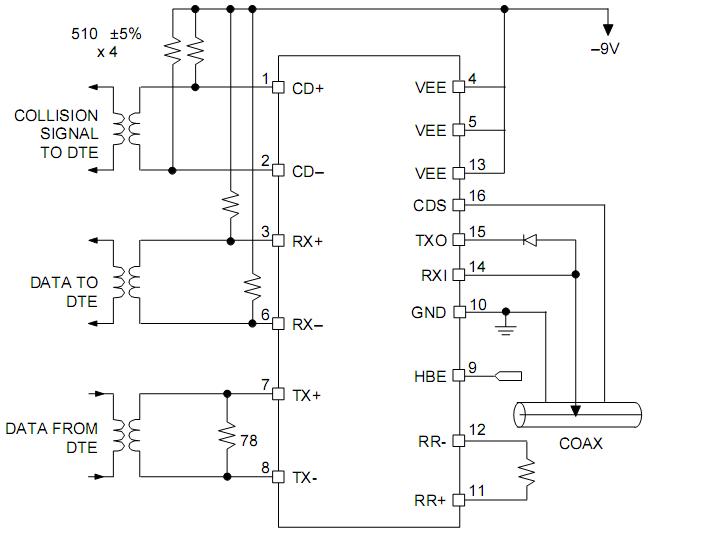

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 78Q8392L |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
78Q8392L-28CH |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
78Q8392LA03-28CH/F |
Maxim Integrated Products |
Ethernet ICs Ethernet Coaxial Transceiver |
Data Sheet |
|
|
||||||||||||
|
78Q8392LA03-CHR/F |
Maxim Integrated Products |
Ethernet ICs Ethernet Coaxial Transceiver |
Data Sheet |
|
|
||||||||||||
|
78Q8392LA03-28CHR/F |
|
TXRX 10BASE 2/5 ETH COAX 28-PLCC |
Data Sheet |
Negotiable |
|
||||||||||||
