Product Summary
The AM29F040B-90JC is a 4 Mbit, 5.0 volt-only Flash memory organized as 524,288 Kbytes of 8 bits each. The The Am29040B is offered in 32-pin PLCC, TSOP, and PDIP packages. The AM29F040B-90JC is designed to be programmed in-system with the standard system 5.0 volt Vcc supply. The AM29F040B-90JC is entirely command set compatible with the JEDEC single-power-supply Flash standard.
Parametrics
AM29F040B-90JC absolute maximum ratings: (1) Storage Temperature Plastic Packages: -65°C to +125°C; (2) Ambient Temperature with Power Applied: -55°C to +125°C; (3) Voltage with Respect to Ground VCC: -2.0V to 7.0V, A9,OE#: -2.0V to 12.5V; (4) All other pins: -2.0V to 7.0V; (5) Output Short Circuit Current: 200mA.
Features
AM29F040B-90JC features: (1) 5.0V±10% for read and write operations; (2) anufactured on 0.32 μm process technology; (3) Access times as fast as 55 ns; (4) Low power consumption; (5) Flexible sector architecture; (6) Embedded Algorithms; (7) Minimum 1,000,000 program/erase cycles per sector guaranteed; (8) 20-year data retention at 125°C.

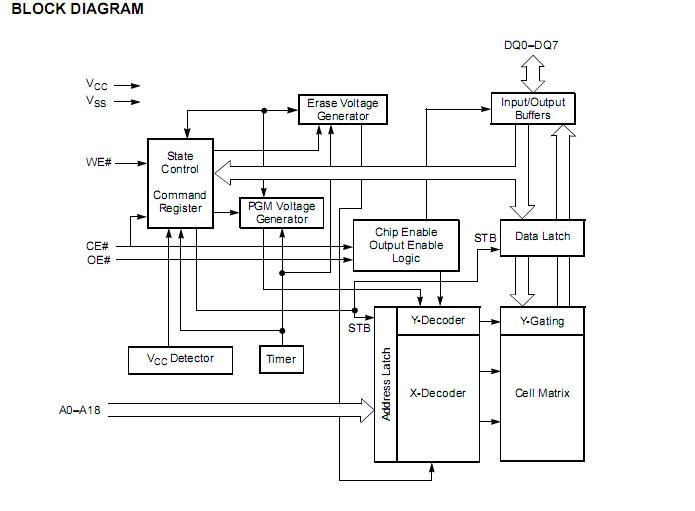

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 AM29F040B-90JC |
AMD |
IC FLASH MEME 4MEG 90NS 32PLCC |
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
AM29114 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
AM29114DC |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
AM29117GC |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
AM29118DCB |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
AM2911APC |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
Am2922 |
Other |
|
Data Sheet |
Negotiable |
|
||||
