Product Summary

The BLF888 power transistor for broadcast transmitter applications and industrial applications. The BLF888 iss optimized for digital applications and can deliver 110W average DVB-T broadband over the full UHF band from 470MHz to 860MHz. The excellent ruggedness of the BLF888 makes it ideal for digital transmitter applications.

Parametrics

BLF888 absolute maximum ratings: (1) drain-source voltage VDS: 104V; (2) gate-source voltage VGS: -0.5 to +11V; (3) Storage temperature Tstg: -65 to +150°C; (4) junction temperature Tj: 200°C.

Features

BLF888 features: (1) Excellent ruggedness; (2) High power gain; (3) High effiency; (4) Designed for broadband operation (470 MHz to 860 MHz) ; (5) Excellent reliability; (6) Internal input matching for high gain and optimum broadband operation; (7) Easy power control; (8) Compliant to Directive 2002/95/EC, regarding Restriction of Hazardous Substances (RoHS).

Diagrams

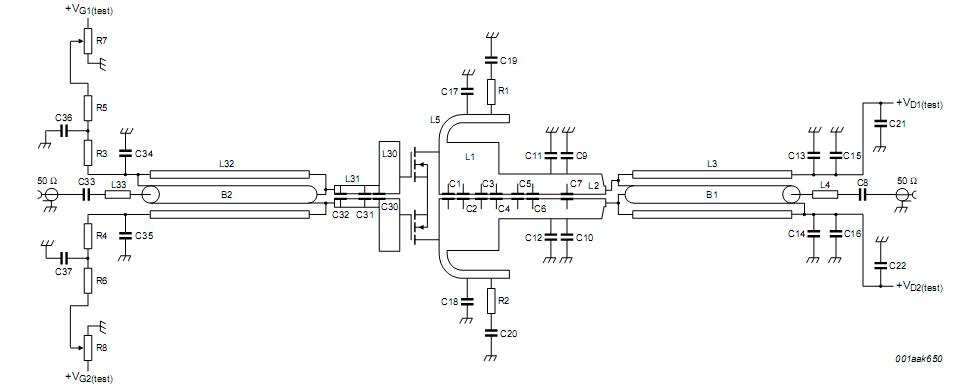

BLF888 Circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
BLF888,112
BLF888,112
NXP Semiconductors
Transistors RF MOSFET Power TRANSISTOR RF PWR LDMOS
Data Sheet
0-42: $161.98
BLF888A,112
BLF888A,112
NXP Semiconductors
Transistors RF MOSFET Power UHF POWER LDMOS TRANSISTOR
Data Sheet
0-42: $125.21
BLF888AS,112
BLF888AS,112
NXP Semiconductors
Transistors RF MOSFET Power UHF POWER LDMOS TRANSISTOR
Data Sheet
0-42: $125.21
BLF888B,112
BLF888B,112
NXP Semiconductors
Transistors RF MOSFET Power UHF pwr LDMOS transistor
Data Sheet
0-45: $121.60
BLF888BS,112
BLF888BS,112
NXP Semiconductors
Transistors RF MOSFET Power UHF pwr LDMOS transistor
Data Sheet
0-45: $121.60
BLF888
BLF888
NXP Semiconductors
Transistors RF MOSFET Power 500W, 470-860MHz
Data Sheet
Negotiable
