Product Summary
The GSC80025 is a switch mode constant current battery saver for 5 cell NiCd or NiMH batteries. The input energy is supplied by the car cigar lighter plug and the battery is charged by 0.7A constant current.
Parametrics
GSC80025 absolute maximum ratings: (1)Input Voltage: 10.5 to 16.0 V; (2)Output Charge Current: 650 to 750 mA; (3)Output Limiting Voltage: 6.5 to 7.00 V; (4)Operating Ambient Temperature Range: – 20 +70 °C.
Features
GSC80025 features: (1)Charge of NiCd or NiMH batteries; (2)Switch mode constant current generation; (3)Three level charging current (fast, trickle, zero; (4)charging current); (5)Overcharge detection by - D V and DT/Dt under; (6)internal microprocessor control; (7)No discharge of the battery when charger is; (8)turned off; (9)Initial trickle charge for deeply discharged batteries.

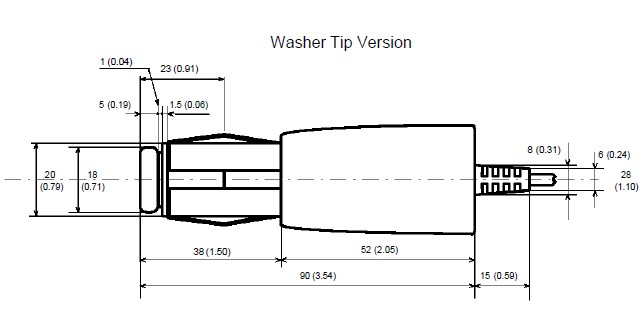

Diagrams
 |
