Product Summary

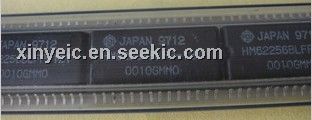

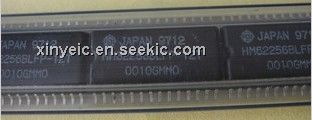

The HM62256BLFP-12T is a CMOS static RAM organized 32,768-word× 8-bit. The HM62256BLFP-12T realizes higher performance and low power consumption by employing 0.8μm Hi-CMOS process technology.The HM62256BLFP-12 packaged in 8×14 mm TSOP, 8 ×13.4 mm TSOP with thickness of 1.2 mm, 450 mil SOP (foot print pitch width), 600 mil plastic DIP, or 300 mil plastic DIP, is available for high density mounting.
Parametrics
HM62256BLFP-12T absolute maximum ratings: (1) Power supply voltage relative to Vss, Vcc: -0.5 to +7.0V; (2) Terminal voltage on any pin relative to Vss, VT: -0.5 to Vcc to +0.3V; (3) Power dissipation PT: 1.0W; (4) Operating temperature range Topr: 0 to +70°C; (5) Storage temperature range Tstg: -55 to +125°C; (6) Storage temperature range under bias Tbias: -10 to +85°C.
Features
HM62256BLFP-12T features: (1) Single 5.0V supply: 5.0V ±10%; (2) Access time: 55 ns/70 ns/85 ns (max) ; (3) Power dissipation:Active: 25 mW (typ) (f = 1 MHz), Standby: 1.0 μW (typ) ; (4) Completely static memory; (5) Equal access and cycle times; (6) Directly TTL compatible all inputs and outputs; (7) Battery backup operation; (8) Three state output.
Diagrams
