Product Summary

The LCP1521SRL is a Programmable transient voltage suppressor for SLIC protection. The LCP1521SRL has been especially designed to protect new high voltage, as well as classical SLICs, against transient overvoltages. The presents a very low gate riggering current (IGT) in order to reduce the in order to reduce the current consumption on printed circuit board during the firing phase.

Parametrics

LCP1521SRL absolute maximum ratings: (1) Non repetitive surge peak on-state current (50Hz sinusoidal) ITSM: 10A (t=200ms); (2) Maximum gate current (50Hz sinusoidal) IGSM: 2A (t=10ms); (3) Maximum voltage LINE/GND VMLG: -150V ( -40°C＜Tamb＜+85°C); (4) Maximum voltage GATE/LINE VMGL： -150V ( -40°C＜Tamb＜+85°C; (5) Storage temperature range Tstg: -55 to +150°C; (6) Maximum junction temperature Tj: 150°C; (7) Maximum lead temperature for soldering during 10 s. TL: 260°C .

Features

LCP1521SRL features: (1) Dual programmable transient suppressor; (2) Wide negative firing voltage range:VMGL= -150 V max; (3) Low dynamic switching voltages: VFP and VDGL; (4) Low gate triggering current: IGT = 5 mA max; (5) Peak pulse current: I=30A (10/1000μS) ; (6) Holding current: IH=150mA min; (7) Low space consuming package.

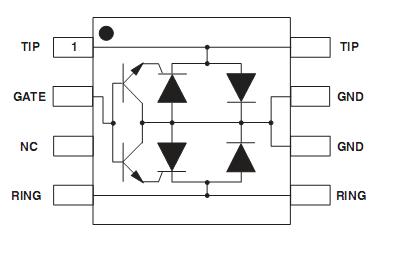

Diagrams
