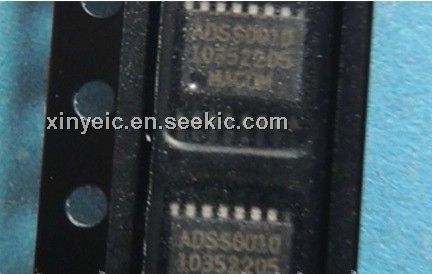

Product Summary

MAADSS0010 is a 1 dB step GaA MMIC digital attenuator with 31 dB attenuation range in a lead-free QSOP-16 (SSOP-16) package. The MAADSS0010 requires external DC blocking capacitors on the RF ports, positive supply voltage and five individual bit control voltages. The MAADSS0010 is particularly suited where high attenuation accuracy, low insertion loss and low intermodulation products are required. The MAADSS0010 is fabricated using M/A-COM GaAs 1.0 micron process.

Parametrics

MAADSS0010TR absolute maximum ratings: (1) Input Power: =34dBm; (2) Voltage: +7V; (3) Operating Temperature: -40 to +85°C; (4) Storage Temperature: -65 to +125°C.

Features

MAADSS0010 features: (1) 5 Bits, 1 dB Steps; (2) Excellent Accuracy; (3) Single Positive Control (+3 V to +5 V); (4) Lead-Free QSOP-16 (SSOP-16) Package; (5) 100% Matte Tin Plating over Copper; (6) Halogen-Free Green Mold Compound; (7) 260°C Reflow Compatible; (8) RoHS Compliant Version of MAATSS0002.

Diagrams

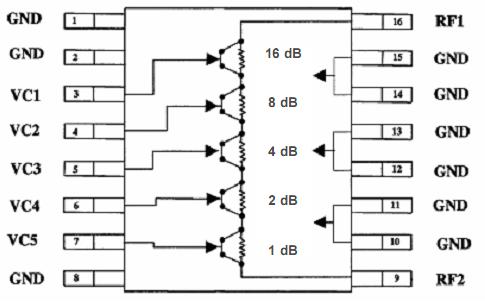

MAADSS0010 Pin Configuration
