Product Summary

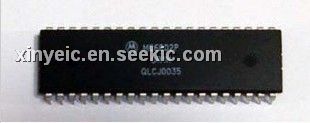

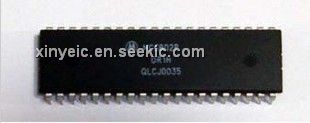

The MC6802P is a monolithic 8-bit microprocessor that contains all the registers and accumulators of the present MC6800 plus an internal clock oscillator and driver on the same chip. In addition, the MC6802P has 128 butes of on-borad RAM located at hex addresses ＄0000 to ＄007F. The first 32 bytes of RAM, at hex addresses ＄0000 to ＄001F, may be retained in a low power mode by utilizing VCC standby; thus, facilitating memory retention during a power-down situation.

Parametrics

MC6802P absolute maximum ratings: (1)Supply voltage, VCC: -0.3 to 7.0V; (2)Input voltage, Vin: -0.3 to 7.0V; (3)Operating temperature range, Ta: 0 to 70℃; (4)Storage temperature range, Tstg: -55 to 150℃.

Features

MC6802P features: (1)On-chip clock circuit; (2)128 ×8 bit on-chip RAM; (3)32 bytes of RAM are retainable; (4)Software-compatible with the MC6800; (5)Expandable to 64K words; (6)Standard TTL-compatible inputs and outputs; (7)8-bit word size; (8)16-bit memory addressing; (9)Interrupt capability.

Diagrams

MC6802P block diagram
