Product Summary

The MGA62563 is an economical, easy-to-use GaAs MMIC amplifier that offers excellent linearity and low noise figure for applications from 0.1 to 3 GHz. Packaged in an miniature SOT-363 package, it requires half the board space of a SOT-143 package. One external resistor is used to set the bias current taken by the MGA62563 over a wide range. This allows the designer to use the same part in several circuit positions and tailor the linearity performance (and current consumption) to suit each position.

Parametrics

MGA62563 absolute maximum ratings: (1)Vd, Device Voltage (pin 6): 6V ; (2)Id, Device Current (pin 6): 100mA; (3)Pin, CW RF Input Power (pin 3): 21dBm; (4)Iref, Bias Reference Current (pin 4): 12mA; (5)Pdiss, Total Power Dissipation: 600mW; (6)TCH, Channel Temperature: 150℃; (7)TSTG, Storage Temperature: 150℃; (8)θch_b, Thermal Resistance: 97℃/W.

Features

MGA62563 features: (1)Single +3V supply; (2)High linearity; (3)Low noise figure; (4)Miniature package; (5)Unconditionally stable.

Diagrams

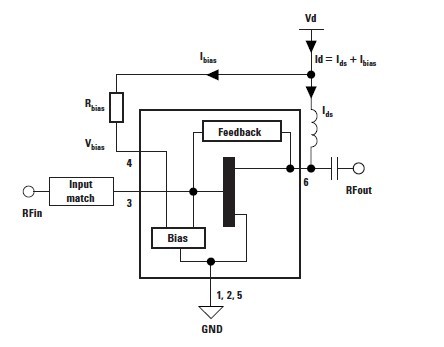

MGA62563 block diagram
