Product Summary

The SPW20N60C3 is a Cool MOS power transistor.

Parametrics

SPW20N60C3 maximum ratings: (1) Continuous drain current ID: 20.7A (TC=25°C) , 13.1A (TC=100°C) ; (2) Pulsed drain current, t limited by Tp Tjmax, ID puls: 62.1mJ; (3) Avalanche energy, single pulse ID=10A, VDD=50V, EAS: 690mJ; (4) Avalanche current, repetitive tAR limited by Tjmax IAR: 20A (5) Reverse diode dv/dtIS =20.7A, VDS=480V, Tj=125, dv/dt: ±20V; (6) Gate source voltage static VGS: ±20V; (7) Gate source voltage AC (f >1Hz) VGS: ±30V; (8) Power dissipation, T = 25°C, Ptot: 208W; (9) Operating and storage temperature Tj, Tstg: -55 to +150°C.

Features

SPW20N60C3 features: (1) New revolutionary high voltage technology; (2) Ultra low gate charge; (3) Periodic avalanche rated; (4) Extreme dv/dt rated; (5) High peak current capability; (6) Improved transconductance.

Diagrams

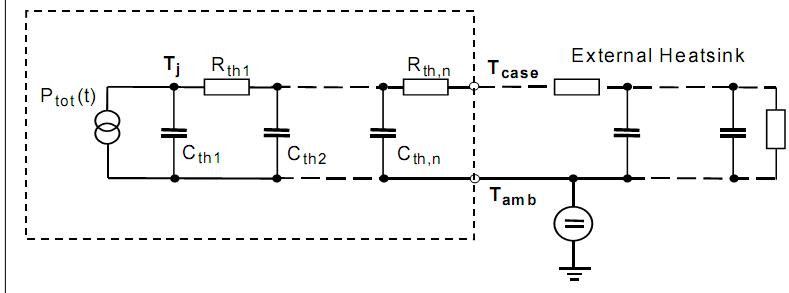

SPW20N60C3 Circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
SPW20N60C3
SPW20N60C3
Infineon Technologies
MOSFET COOL MOS N-CH 650V 20.7A
Data Sheet
0-1: $2.86
1-10: $2.55
10-100: $2.09
100-250: $1.49
