Product Summary
The SSM2220P also offers excellent matching of the current gain to about 0.5% which will help to reduce the high order amplifier harmonic distortion. The SSM2220P prevents a base-emitter breakdown condition which can result in degradation of gain and matching performance due to excessive breakdown. The applications of the SSM2220P include: microphone preamplifiers, tape-head preamplifiers, current sources and mirriors, low noise precision instrumentation, voltage controlled amplifiers/multipllers.
Parametrics
SSM2220P absolute maximum ratings: (1) collerctor-base voltage (BVcbo): 36V; (2) collector-emitter voltage (BV ceo) : 36V; (3) Collector-Collector Voltage (BVcc) : 36V; (4) Emitter-Emitter Voltage (BVEE) : 36V; (5) Collector Current (Ic) : 20mA; (6) Emitter Current (IE): 20mA; (7) Operating Temperature Range: -40°C to +85°C; (8) Operating Junction Temperature: -55°C to +150°C; (9) Storage Temperature: -65°C to +150°C; (10) Junction Temperature: -65°C to +150°C.
Features
SSM2220P features: (1) very low voltage noise: @100Hz, 1nv/ˇHz Max; (2) High Gain Bandwidth: 190MHz Typ; (3) Excellent Gain: @Ic=1mA, 165 Typ; (4) Tight Gaint Matching: 3% Max; (5) Outstanding Logarithmic Conformance rBE=0.3Ω Typ; (6) Low Offset Voltage: 200μV Max; (7) Low Cost.

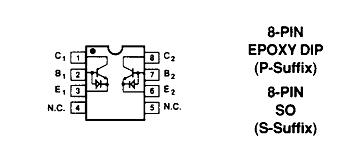

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SSM2220P |
Analog Devices Inc |
IC TRANS AUDIO DUAL PNP 8DIP |
Data Sheet |
Negotiable |
|
||||||||||||||||||||
 |
SSM2220PZ |
|
IC TRANS PNP AUDIO DUAL 8DIP |
Data Sheet |
|
|
||||||||||||||||||||
