Product Summary

The TCA105 is a threshold switch. The device contains an oscillator stage, a threshold switch, and two anti-valent output stages. The TCA105 is especially suitable for application in proximity switches, light reflection switches, and other contactiess switching applicaitions.

Parametrics

TCA105 absolute maximum ratings: (1)supply voltage, VS: 30V; (2)output voltage, Vo: 30V; (3)output current, Io: 50mA; (4)switching frequency, fs: 40kHz; (5)input voltage, Vi: >0V; (6)junction temperature, Tj: 150℃; (7)storage temperature range, Tstg: -55 to 125℃.

Features

TCA105 features: (1)wide range of supply voltage, 4.5 to 30V; (2)high output current, 50mA; (3)TTL-compatible; (4)triggerable with DC signal.

Diagrams

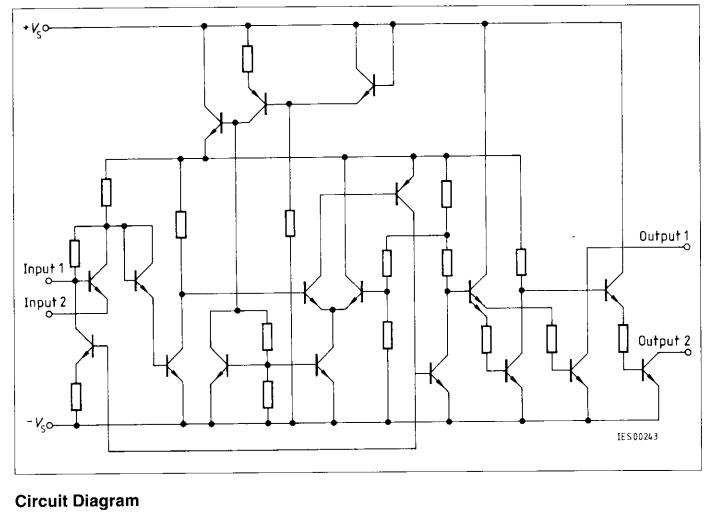

TCA105 block diagram
