The TD350i is an advanced gate driver for IGBT and power MOSFET. Control and protection functions are included and allow the design of high reliability systems.
Parametrics
TD350i absolute maximum ratings: (1)Maximum Supply Voltage (VH - VL): 28 V; (2)Maximum VH voltage vs. GND: 28 V; (3)Minimum VL voltage vs. GND: -12 V; (4)Voltage on OUTH, OUTL, CLAMP pins: VL-0.3 to VH+0.3 V; (5)Voltage on DESAT, FAULT, LVOFF pin: -0.3 to VH+0.3 V; (6)Voltage on other pins (IN, COFF, VREF): -0.3 to 7 V; (7)Power dissipation: 500 mW.
Features
TD350i features: (1)0.75A source/1.2A sink min gate drive; (2)Active Miller clamp feature; (3)Two steps turn-off with adjustable level and delay; (4)Desaturation detection; (5)Fault status output; (6)Negative gate drive ability; (7)Input compatible with pulse transformer or optocoupler; (8)Separate sink and source outputs for easy gate drive; (9)UVLO protection.

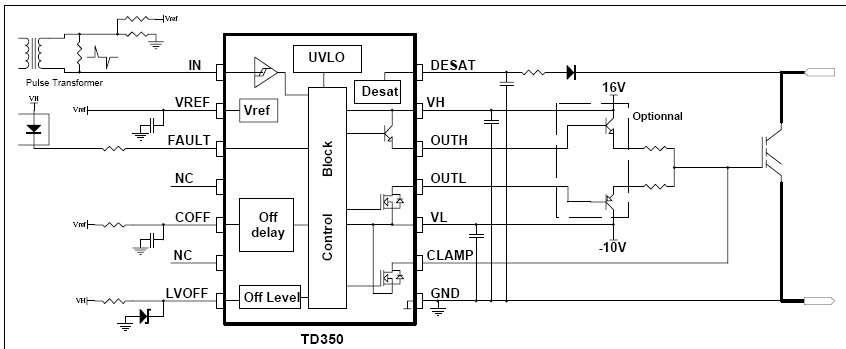

Diagrams
