Product Summary
The XC68HC912D60CPV8 is a microcontroller unit (MCU). The XC68HC912D60CPV8 is a 16-bit device available in two package options, 80-pin QFP and 112-pin TQFP. Onchip peripherals include a 16-bit central processing unit (CPU12), 60K bytes of flash EEPROM (68HC912D60) or ROM (68HC12D60), 2K bytes of RAM, 1K bytes of EEPROM, two asynchronous serial communication interfaces (SCI), a serial peripheral interface (SPI), an enhanced capture timer (ECT), two (one on 80QFP) 8-channel,10-bit analog-to-digital converters (ATD), a four-channel pulse-width modulator (PWM), and a CAN 2.0 A, B software compatible module (MSCAN12).
Parametrics
XC68HC912D60CPV8 absolute maximum ratings: (1)Supply voltage, VDD, VDDA, VDDX, VDDPLL: -0.3 to +6.5 V; (2)Input voltage, VIN: -0.3 to +6.5 V; (3)Operating temperature range, TA: 0 to +70℃; (4)Storage temperature range, Tstg: -55 to +150℃; (5)Current drain per pin Excluding VDD and VSS, IIN: ±25 mA; (6)VDD differential voltage, VDD-VDDX: 6.5 V.
Features
XC68HC912D60CPV8 features: (1)16-bit CPU12, Upward compatible with M68HC11 instruction set; Interrupt stacking and programmer’s model identical to M68HC11; 20-bit ALU; Instruction queue; Enhanced indexed addressing; (2)Multiplexed bus, Single chip or expanded; 16 address/16 data wide or 16 address/8 data narrow mode; Two 8-bit ports with key wake-up interrupt (2 pins only are available on 80QFP) and one I2C start bit detector (112TQFP only); (3)Memory, 60K byte flash EEPROM, made of a 28K module and a 32K; (4)module with 8K bytes protected BOOT section in each module(68HC912D60); 60K byte ROM (68HC12D60); 1K byte EEPROM; 2K byte RAM; (5)Analog-to-digital converters, 2 x 8-channels, 10-bit resolution in 112TQFP; 1 x 8-channels, 8-bit resolution in 80QFP; 1M bit per second, CAN 2.0 A, B software compatible module; Two receive and three transmit buffers; Flexible identifier filter programmable as 2 x 32 bit, 4 x 16 bit or 8 x 8 bit; (6)Four separate interrupt channels for Rx, Tx, error and wake-up; Low-pass filter wake-up function; In 80QFP, only TxCAN and RxCAN pins are available; Loop-back for self test operation; Programmable link to a timer input capture channel, for timestamping and network synchronization.

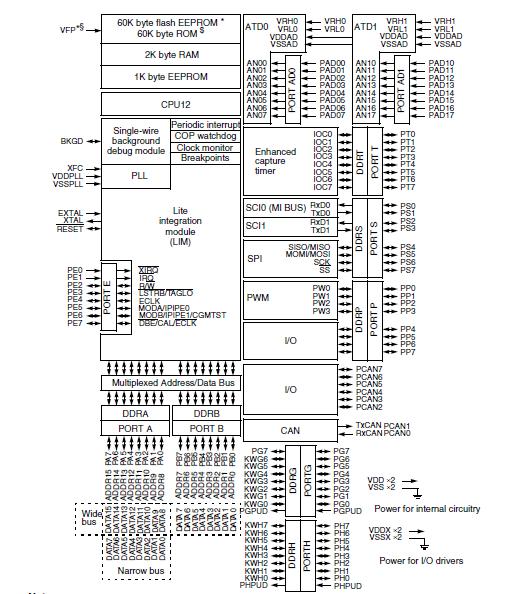

Diagrams
