Product Summary

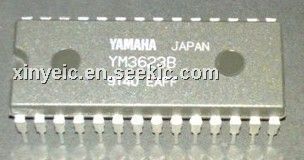

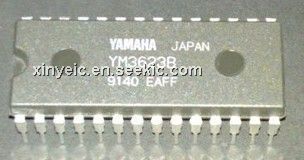

The YM3623B is an LSI device, developed by YAMAHA, which receives and plays back the digital audio interface format signals that are transferred between digital audio equipment. Use of the YM3623B climinates the need for a special ecternally-mounted circuit for playback, thereby greatly facilitating the playback of digital audio signals.
Parametrics
YM3623B absolute maximum ratings: (1)Supply voltage, VDD-VSS: -0.3 to 7V; (2)Input voltage, VI: VSS -0.3 to VDD +0.5V; (3)Operating temperature, TOP: -20 to 75℃; (4)Storage temperature, Tstg: -50 to 125℃.
Features
YM3623B features: (1)Silicon gate CMOS construction; (2)28-pin dual-inline package(DIP); (3)45V power supply.

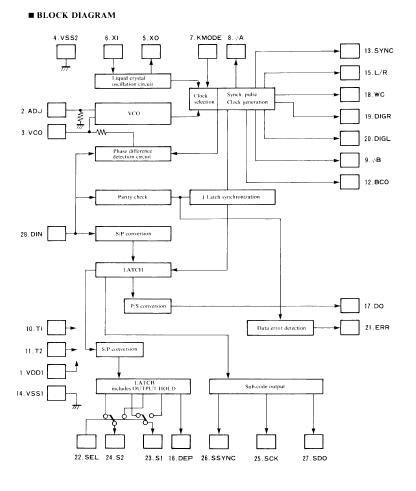

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 YM3623B |
Other |
|
Data Sheet |
Negotiable |
|
||||
