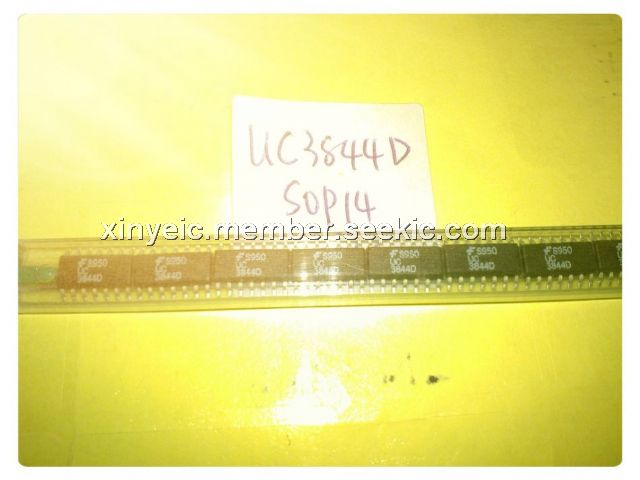

Product Summary

The uc3844d is the fixed frequency current-mode PWM controller. It is specially designed for Off-Line and DC to DC converter applications with minimum external components. These integrated circuit of the uc3844d features a trimmed oscillator for precise duty cycle control, a temperature compensated reference, high gain error amplifier, current sensing comparator and a high current totempole output for driving a Power MOSFET.

Parametrics

uc3844d absolute maximum ratings: (1)Supply Voltage: 30 V; (2)Output Current: ±1A; (3)Analog Inputs (Pin 2.3): -0.3 to 6.3 V; (4)Error Amp Output Sink Current: 10 mA; (5)Power Dissipation at TA≤25 ℃ (8DIP): 1200 mW; (6)Power Dissipation at TA≤25 ℃ (8SOP): 460 mW; (7)Power Dissipation at TA≤25 ℃(14SOP): 680 mW; (8)Storage Temperature Range: -65 ~ +150 ℃; (9)Lead Temperature (Soldering, 10sec): +300℃.

Features

uc3844d features:(1)Low Start up Current; (2)Maximum Duty Clamp; (3)UVLO With Hysteresis; (4)Operating Frequency up to 500KHz.

Diagrams

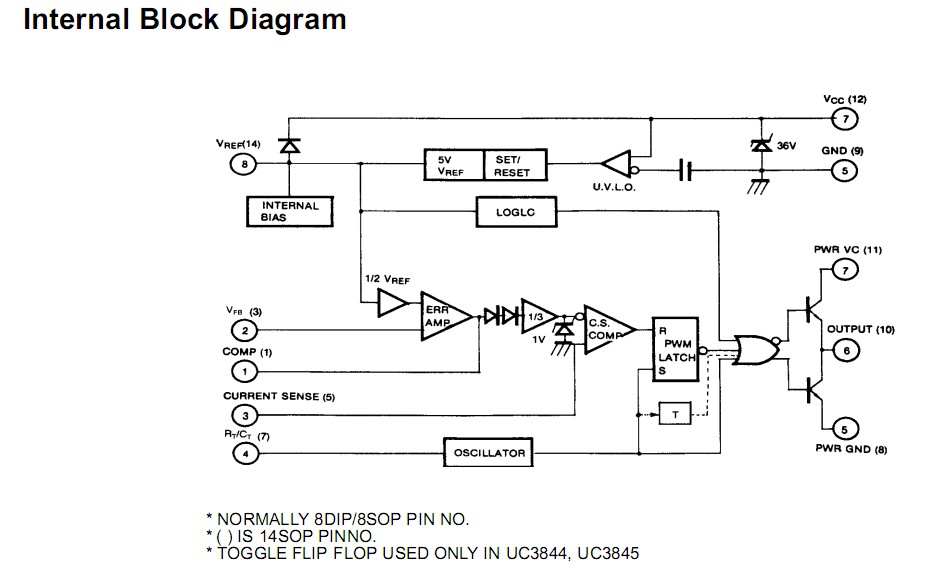

uc3844d internal block diagram
