Product Summary
The XR-2206 is a monolithic function generator integrated circuit capable of producing high quality sine, quare, triangle, ramp, and pulse waveforms of high-stability and accuracy. Frequency of operation of the XR-2206 can be selected externally over a range of 0.01Hz to more than 1MHz. The XR-2206 circuit is ideally suited for communications instrumentation, and function generator applications requiring sinusoidal tone, AM, FM, or FSK generation.
Parametrics
XR-2206 absolute maximum ratings: (1) Power Supply: 26V; (2) Power Dissipation: 750mW; (3) Derate Above 25°C: 5mW/°C; (4) Total Timing Current: 6mA; (5) Storage Temperature: -65°C to +150°C.
Features
XR-2206 features: (1) Low-Sine Wave Distortion, 0.5%, Typical; (2) Excellent Temperature Stability, 20ppm/C, Typ; (3) Wide Sweep Range, 2000:1, Typical; (4) Linea Amplitude Modulation; (5) TTL Compatible FSK Controls; (6) Wide Supply Range, 10V to 26V; (7) Adjustable Duty Cycle, 1% to 99%.

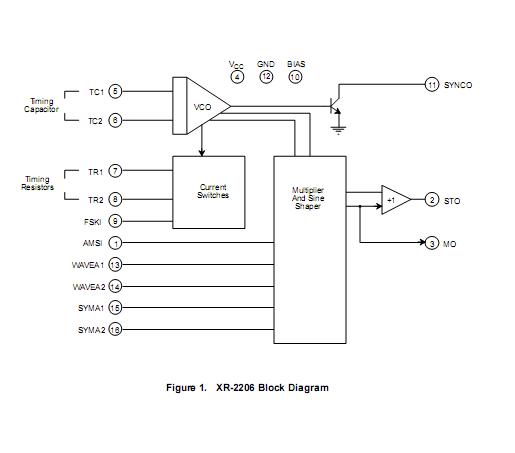

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 XR2206 |
Other |
|
Data Sheet |
Negotiable |
|
||||||
 |
XR2206/11/12EB |
Exar |
Other Development Tools Supports 2206, 2211 & 2212 |
Data Sheet |
|
|
||||||
|
XR2206DTR-F |
Exar |
Clock Generators & Support Products 10V-26V 0.01Hz-1MHz Temp 0C to 70C |
Data Sheet |
Negotiable |
|
||||||
|
XR2206CP-F |
Exar |
Parity Functions 10V-26V 0.01Hz-1MHz temp 0C to 70C |
Data Sheet |
Negotiable |
|
||||||
|
XR2206D-F |
Exar |
Parity Functions 10V-26V 0.01Hz-1MHz temp 0C to 70C |
Data Sheet |
Negotiable |
|
||||||
