Product Summary

The AD744 is a fast-settling, precision, FET input, monolithic operational amplifier. The AD744 offers the excellent dc characteristics of the AD711 BiFET family with enhanced settling, slew rate, and bandwidth. The AD744 also offers the option of using ustom compensation to achieve exceptional capacitive load drive capability.

Parametrics

AD744 absolute maximum ratings: (1) Supply Voltage: ±18V; (2) Internal Power Dissipation: 500mW; (3) Input Voltage: ±18V; (4) Output Short Circuit Duration: Indefinite; (5) Differential Input Voltage: +Vs and -Vs; (6) Storage Temperature Range (Q, H) : -65°C to +150°C; (7) Storage Temperature Range (N, R) : -65°C to +125°C; (8) Lead Temperature Range (Soldering 60 seconds) : 300°C.

Features

AD744 features: (1) AC performance; (2) 500ns settings to 0.01% for 10V step; (3) 1.5μs settling to 0.0025% for 10V step; (4) 75V/μs Slew Rate; (5) 0.5mV max offset voltage; (6) 10μV/°C max Drift.

Diagrams

AD744 Pin Configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD7441BRM-REEL7
AD7441BRM-REEL7
Analog Devices Inc
IC ADC 10BIT W/DIFF INP 8-MSOP
Data Sheet
Negotiable
AD7441BRT-REEL7
AD7441BRT-REEL7
Analog Devices Inc
IC ADC 10BIT W/DIFF INP SOT-23-8
Data Sheet
Negotiable

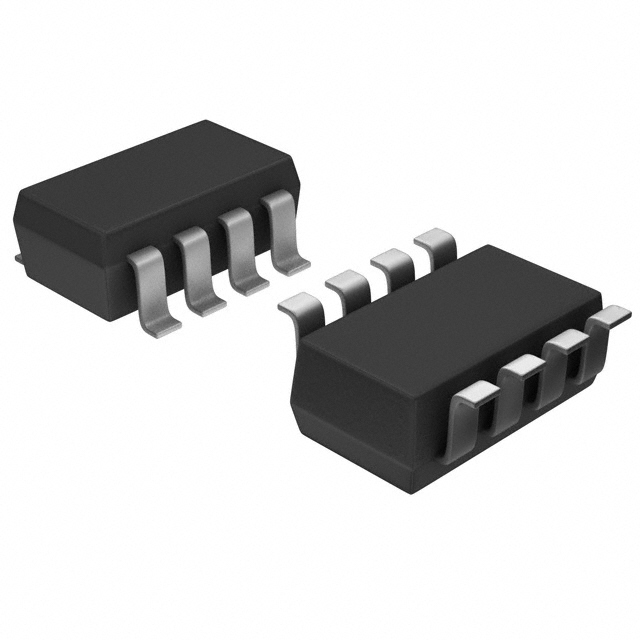

AD7441BRTZ-REEL7
AD7441BRTZ-REEL7

IC ADC 10BIT W/DIFF INP SOT-23-8
Data Sheet
0-3000: $1.82
AD744BQ
AD744BQ

IC OPAMP BIFET 13MHZ PREC 8CDIP
Data Sheet
0-48: $5.36
AD744JNZ
AD744JNZ

IC OPAMP BIFET 13MHZ PREC 8DIP
Data Sheet
0-1: $3.42
1-10: $3.05
10-25: $2.75
25-100: $2.50
100-250: $2.26
250-500: $2.03
500-1000: $1.71
1000-2500: $1.63
AD744KR
AD744KR

IC OPAMP BIFET 13MHZ PREC 8SOIC
Data Sheet
0-98: $4.31
AD744KR-REEL7
AD744KR-REEL7

IC OPAMP BIFET 13MHZ PREC 8SOIC
Data Sheet
0-750: $3.00
AD744KRZ
AD744KRZ

IC OPAMP BIFET 13MHZ PREC 8SOIC
Data Sheet
0-1: $4.79
1-10: $4.31
10-100: $3.55
100-250: $3.26
250-500: $2.97
500-1000: $2.59
1000-2500: $2.56
