Product Summary

The AD7512DIKN is a protected analog switch. It features over-voltage protection up to ±25V above the power supplies. The benefits are obtained without sacrificing the low ON resistance or low leakage current, the main features of an analog switch. The AD7512DIKN consists of four independent SPST analog switched packaged in either a 16-pin DIP or a 20-terminal surface mount package. It differs only in that the digital control logic is inverted. The AD7512DIKN has two independent SPDI switches packaged either in a 14-pin DIP or a 20-terminal surface mount packzge.

Parametrics

AD7512DIKN absolute maximum ratings: (1)VDD to GND: +17V; (2)VSS to GND: -17V; (3)Overvoltage at VD(VS)(1 second surge): VDD+25V or VSS-25V; (continuous): VDD+20V or VSS-20V or 20mA, whichever occurs first; (4)Switch current(IDS, continuous): 50mA; (5)Switch current(IDS, surge)1ms duration, 10% duty cycle: 150mA; (6)Digital input voltage range: 0V to VDD +0.3V; (7)Power dissipation(any package)up to +75℃: 450mW; derates above +75℃ by: 6mW/℃; (8)Lead temperature(soldering, 10sec): +300℃; (9)Storage temperature: -65℃ to +150℃; (10)Operating temperature Commercial: 0 to 70℃; industrial: -25℃ to +85℃; extended: -55℃ to +125℃.

Features

AD7512DIKN features: (1)Latch-proof; (2)Overvoltage-proof: ±25V; (3)Low RON: 75Ω; (4)Low dissipation: 3mW; (5)TTL/CMOS direct interface; (6)Silicon-nitride passivated; (7)Monolithic dielectrically-isolated CMOS; (8)Standard 14-/16-pin DIPs and 20-terminal surface mount packages.

Diagrams

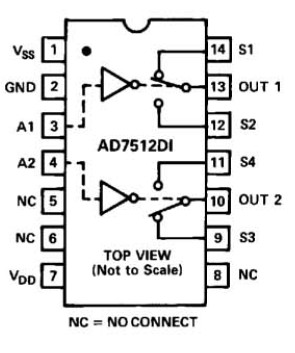

AD7512DIKN block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

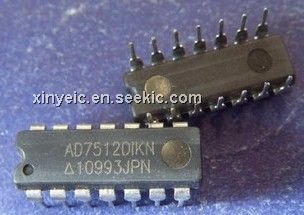

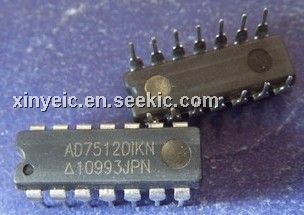

AD7512DIKN
AD7512DIKN


IC SWITCH DUAL SPDT 14DIP

Data Sheet

0-25: $9.35
AD7512DIKNZ
AD7512DIKNZ


IC SWITCH DUAL SPDT 14DIP

Data Sheet

0-1: $9.85
1-25: $8.28
25-100: $7.61
100-250: $6.94
250-500: $6.49
500-1000: $5.97
