Product Summary

The CY7C68013A-100AXC is an EZ-USB FX2LP USB Microcontroller with high speed usb peripheral controller. The applications of the CY7C68013A-100AXC include Portable video recorder, MPEG/TV conversion, DSL modems, ATA interface, Memory card readers, Legacy conversion devices, Cameras, Scanners, Wireless LAN, MP3 players, Networking.

Parametrics

CY7C68013A-100AXC absolute maximum ratings: (1)Storage Temperature: -65℃ to +150℃; (2)Ambient Temperature with Power Supplied (Commercial): 0℃ to +70℃; (3)Ambient Temperature with Power Supplied (Industrial): -40℃ to + 105℃; (4)Supply Voltage to Ground Potential: -0.5V to +4.0V; (5)DC Input Voltage to Any Input Pin: 5.25V; (6)DC Voltage Applied to Outputs; (7)in High Z State: -0.5V to VCC +0.5V; (8)Power Dissipation: 300 mW; (9)Static Discharge Voltage: >2000V; (10)Max Output Current, per I/O port: 10 mA; (11)Max Output Current, all five I/O ports (128- and 100-pin packages): 50 mA.

Features

CY7C68013A-100AXC features: (1)USB 2.0 USB IF High Speed Certified (TID 40460272); (2)Single Chip Integrated USB 2.0 Transceiver, Smart SIE, and Enhanced 8051 Microprocessor; (3)Fit, Form, and Function Compatible with the FX2; (4)Ultra Low Power: ICC No More than 85 mA in any Mode; (5)16 KBytes of On-Chip Code/Data RAM; (6)Four Programmable BULK/INTERRUPT/ISOCHRONOUS Endpoints; (7)Additional Programmable (BULK/INTERRUPT) 64 Byte Endpoint; (8)8-bit or 16-bit External Data Interface; (9)Smart Media Standard ECC Generation.

Diagrams

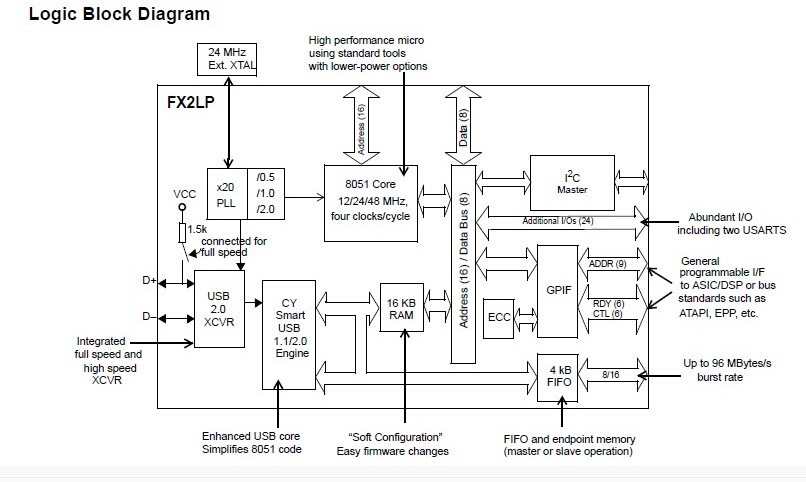

CY7C68013A-100AXC block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
CY7C68013A-100AXC
CY7C68013A-100AXC

Cypress Semiconductor

8-bit Microcontrollers (MCU) EZ USB FX2LP LO PWR Hi COM

Data Sheet

0-1: $11.87
1-25: $10.27
25-50: $10.07
50-100: $9.71
