Product Summary

The D13007K is a high voltage fast-switching NPN power transistor. The applications of the D13007K include: Energy-saving ligh, Electronic ballasts, High frequency switching power supply, High frequency power transform and Commonly power amplifier.

Parametrics

D13007K absolute maximum ratings: (1) Collector- Emitter Voltage (VBE=0) VCES: 700V; (2) Collector- Emitter Voltage (IB=0) VCEO: 400; (3) Emitter-Base Voltage VEBO: 9V; (4) Collector Current (DC) IC: 8A; (5) Collector Current (pulse) ICP: 16A; (6) Base Current (DC) IB: 4A; (7) Base Current (pulse) IBP: 8A; (8) Total Dissipation (TO-220) Pc: 80W; (9) Junction Temperature Tj: 150°C ; (10) Storage Temperature Tstg: -55 to +150°C .

Features

D13007K features: (1) (1) High breakdown voltage; (2) High current capability; (3) High switching speed; (4) High reliability; (5) RoHS product.

Diagrams

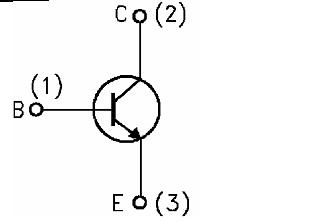

D13007K Circuit
