Product Summary

The DG506ACJ is a monolithic CMOS analog multiplexer. It is a differential 8 channel(2 of 16)multiplexer. The DG506ACJ features break-before-make switching. Maxim guarantees that the multiplexer will not latch-up if the power supplies are turned off with the input signals still present as long as absolute maximum ratings are not violated. The multiplexer operates over a wide range of power supplies from ±4.5V to ±18V. The applications of the DG506ACJ include Control systems, Data logging systems, Aircraft heads up displays, Data acquisition systems, Signal routing.

Parametrics

DG506ACJ absolute maxing ratings: (1)Voltage referenced to V- V+: 44V, GND: 25V; (2)Digital inputs VS, VD: -2V to(V+ 2V)or 20mA, whichever occurs first; (3)Current any terminal except S or D: 30mA; (4)Continuous current S or D: 20mA; (5)Peak current S or D: 40mA; (6)Storage temperature(A&B suffix): -65℃ to 150℃, (C suffix): -65℃ to 125℃; (7)Operating temperature(A suffix): -55℃ to 125℃, (B suffix): -25℃ to 85℃, (C suffix): 0℃ to 70℃; (8)Power dissipation 28 pin ceramic DIP: 1200mW, 28 pin plastic DIP: 625mW.

Features

DG506ACJ features: (1)Improved 2nd source; (2)Pin compatible with harris, siliconix, intersil; (3)Operable with ±4.5V to ±18V supplies; (4)Symmetrical, bi-directional operation; (5)Logic and enable inputs, TTL and CMOS compatible; (6)Latch-up proof construction; (7)Monolithic, low-power CMOS design.

Diagrams

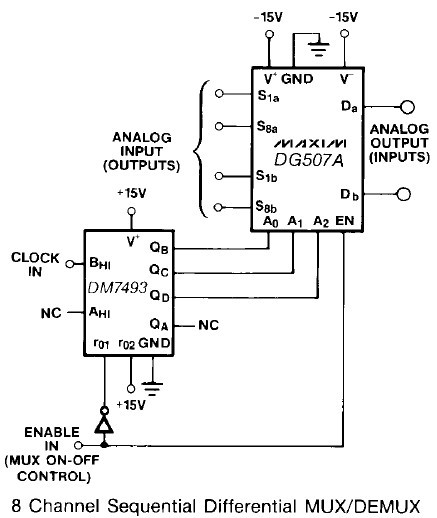

DG506ACJ block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
DG506ACJ
DG506ACJ

Maxim Integrated Products

Multiplexer Switch ICs 16:1 CMOS Mid Voltage MUX

Data Sheet

0-779: $4.09
DG506ACJ+
DG506ACJ+

Maxim Integrated Products

Multiplexer Switch ICs 16:1 CMOS Mid Voltage MUX

Data Sheet

0-1: $9.47
1-25: $6.37
25-50: $4.61
50-100: $4.55
DG506ACJ-2
DG506ACJ-2

Maxim Integrated Products

Multiplexer Switch ICs

Data Sheet

Negotiable
