Product Summary
The LT1054CP is a bipolar, switched-capacitor voltage converter with regulator. The LT1054CP provides higher output current and significantly lower voltage losses than previously available converters. Total voltage of the LT1054CP drop at 100-mA output current typically is 1.1 V. The LT1054CP also provides regulation, a feature previously not available in switched-capacitor voltage converters.
Parametrics
LT1054CP absolute maximum ratings: (1) Supply voltage, VCC: 16V; (2) Input voltage range, V: FB/SD: 0V to VCC, OSC: 0V to Vref; (3) Junction temperature: 125°C; (4) Package thermal impedance: 57°C/W; (5) Storage temperature range, Tstg: -55°C to 150°C.
Features
LT1054CP features: (1) Output Current: 100mA; (2) Low Loss: 1.1V at 100mA; (3) Operating Range: 3.5V to 15V; (4) Reference and Error Amplifier for Regulation; (5) External Shutdown; (6) External Oscillator Synchronization; (7) Devices Can Be Paralleled.

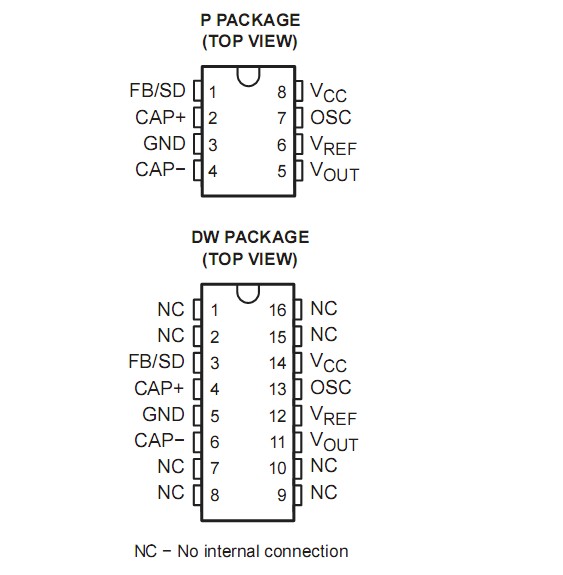

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LT1054CP |
Texas Instruments |
Charge Pumps Bipolar Regulated V |
Data Sheet |
|
|
||||||||||||
|
LT1054CPE4 |
Texas Instruments |
Charge Pumps Switched-Capacitor Voltage Converter |
Data Sheet |
|
|
||||||||||||
