MC9S12XET256MAL

micro controller, 25mA, 2.16V, QFP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $5.00~5.83 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
5 ~ 50 :	5.83 / Piece
51 ~ 100 :	5.34 / Piece
101 ~ 500 :	5.00 / Piece

PartNumber:: MC9S12XET256MAL

Brand:: Freescale Semiconductor, Inc - Freescale | Pack: QFP | D/C: 02+

Availability:: Supply Ability: 2/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. yoyo's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-02-03

From Other Seller

Part Number:MC9S12XET256MAL
US $5.00 - 5.83
Quantity:

piece

Product Summary

The MC9S12XET256MAL micro controllers is a further development of the S12XD-Family including new features for enhanced system integrity and greater functionality. The MC9S12XET256MAL delivers 32-bit performance with all the advantages and efficiencies of a 16 bit MCU. The MC9S12XET256MAL retains the low cost, power consumption, EMC and code-size efficiency advantages currently enjoyedbyusersofFreescale existing16-BitMC9S12 and S12X MCU families.

Parametrics

MC9S12XET256MAL absolute maximum ratings: (1) I/O, regulator and analog supply voltage, VDD35: -0.3V to 6.0V; (2) Digital logic supply voltage, VDD: -0.3 to 2.16V; (3) PLL supply voltage VDDPLL: -0.3 to 2.16V; (4) NVM supply voltage, VDDF: -0.3V to 3.6V; (5) Instantaneous maximum current Single pin limit for all digital I/O pins Il: -25 to +25mA; (6) Instantaneous maximum current Single pin limit for EXTAL, XTAL, IDL: -25 to +25mA; (7) Maximum current Single pin limit for power supply pins: -100 to 100mA: (8) Storage temperature range Tstg: -65 to 155°C.

Features

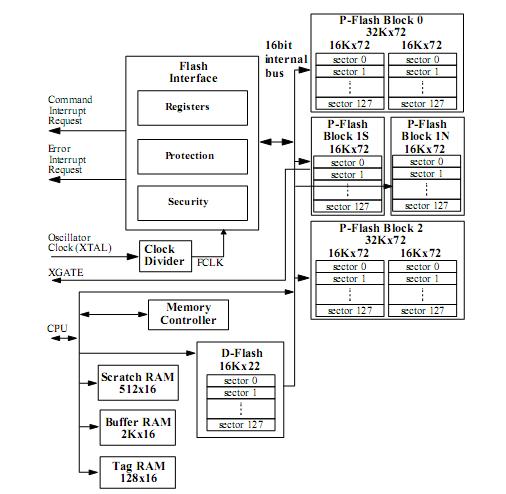

MC9S12XET256MAL features: (1) Up to 4 Kbytes of emulated EEPROM (EEE) accessible as 4 Kbytes of RAM; (2) Flexible protection scheme to prevent accidental program or erase of data; (3) Automatic EEE ?le handling using an internal Memory Controller; (4) Up to 32 Kbytes of D-Flash memory with 256 byte sectors for user access; (5) No external high-voltage power supply required for Flash memory program and erase operations; (6) Ability to program up to four words in a burst sequence.
